  6. Triangle Tp Plat Kngpnlss Cstr, Nyln, 4 in

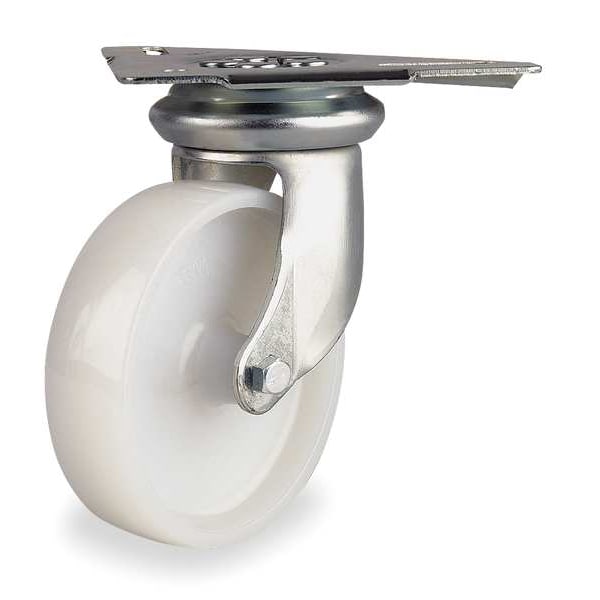

Zoro Select Triangle Tp Plat Kngpnlss Cstr, Nyln, 4 in TS4 100 NY04 T19 - main

Triangle Tp Plat Kngpnlss Cstr, Nyln, 4 in

  • Mfr # TS4 100 NY04 T19

  • Zoro # G1674942

product price:  $28.99
/ea

Key Features

Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
4 in
Mounting Height
5 1/2 in
Load Rating
500 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TS4 100 NY04 T19
Zoro #
G1674942
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Dia.
4 in
Mounting Height
5 1/2 in
Mounting Plate Size
5 1/2 in x 5 1/2 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/2in
Wheel Width
1 3/8 in
Mounting Plate Width
5 1/2 in
Mounting Plate Thickness
3/32 in
Outside Slot Spacing - Length
4.125 in
For Axle Dia.
8 mm
Inside Slot Spacing - Width
2.375 in
Overall Wheel Width
35 mm
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
2.375 in
Mounting Plate Length
5 1/2 in

Details

Item
Plate Caster
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
500 lb
Wheel/Tread Color
White
Wheel Hardness Rating
80 Shore D
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Outside Bolt Hole Spacing
4-1/8 in x 4-1/8 in
Inside Bolt Hole Spacing
2-3/8 in x 2-3/8 in
Caster Plate Hole Pattern
E
Number of Wheels
1
Replacement Wheel
Mfr. No. 100 NY04
Caster Brake Included
No
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Non-Marking
Yes
Frame Finish
Polished
Wheel Color
White
Caster Temp. Range Available
Yes
Number of Mounting Holes
3
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Wheel Bearing Type
Plain
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Compatible With
100 NY04
Load Capacity - Maximum
500 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Triangle
For Surface Type
Ceramic, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Operating Temperature - Minimum
0 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-4 Degrees to 176 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 3/8 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
