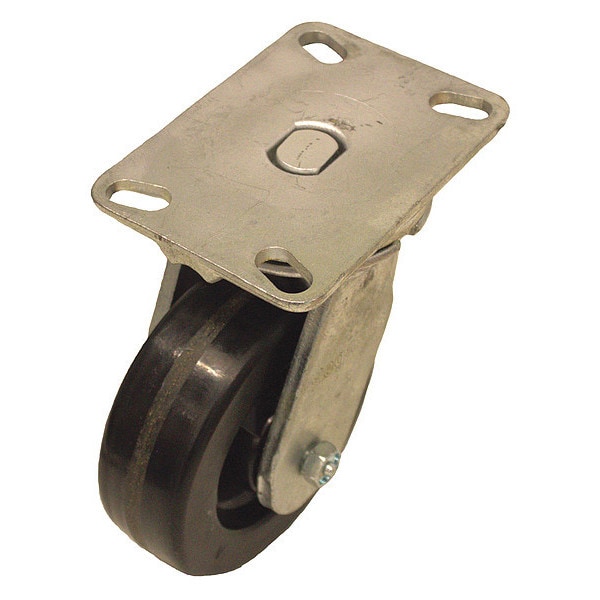

Plate Caster, 1400 lb. Ld Rating, Roller

  • Mfr # P23S-PH080R-16
  • Zoro # G7279741
product price:
$
98.29
/ea

Key Features

Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P23S-PH080R-16
Zoro #
G7279741
UPC #
-
Country of Origin
China
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-PH-080X020/050R
Item
Plate Caster
Features
Floor Protective
Wheel Color
Black
Extended Lead
No
Load Rating
1400 lb
Core Color
Black
Non-Marking
Yes
Thread Guards
No
Standards
ANSI ICWM
Caster Brake Included
No
Caster Sub-Type
Swivel
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
Load Rating Range
Heavy Duty
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Core Material
Phenolic
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel Bearing Type
Roller
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1400 lb
ESD Conductive
No
Series
P23 Series
Caster Mounting Type
Plate
Tread
Standard
Compatible With
P-PH-080X020/050R
Load Capacity - Maximum
1,400 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Wheel Hardness Rating
102 HRE
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Dimensions

Wheel Dia.
8 in
Swivel Radius
6 in
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Overall Height
10-1/2"
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
10 1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Thickness
5/16 in
Bolt Hole Spacing - Length
2.438 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/4 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Fits Chest Size
Floor Protective

Description

Swivel, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
