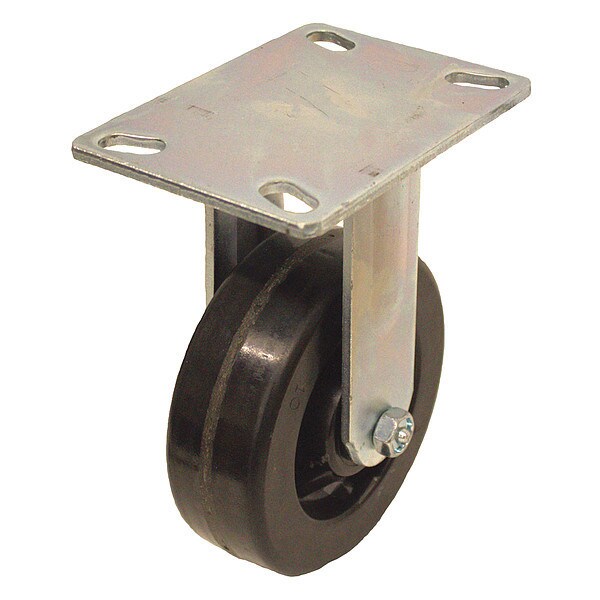

Zoro Select Plate Caster, 1400 lb. Ld Rating, Roller P23R-PH080R-16 - main

Plate Caster, 1400 lb. Ld Rating, Roller

  • Mfr # P23R-PH080R-16

  • Zoro # G7279610

product price:  $44.19
/ea

Key Features

Wheel Width
2 in
Standards
ANSI ICWM
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P23R-PH080R-16
Zoro #
G7279610
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
None- Rigid Caster
Overall Height
10-1/2in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
10 1/2 in
Outside Slot Spacing - Width
3.375 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/4 in
Overall Wheel Width
2 in
Mounting Plate Thickness
0.276 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Bolt Hole Spacing - Length
2.438 in

Details

Standards
ANSI ICWM
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Plated
Item
Rigid Caster
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Core Color
Black
Thread Guards
No
Caster Brake Included
No
Wheel Color
Black
Number of Wheels
1
Replacement Wheel
Mfr. No. P-PH-080X030/075R
Extended Lead
No
Features
Floor Protective
Caster Temp. Range Available
Yes
Caster Sub-Type
Rigid
Non-Marking
Yes
Load Rating
1400 lb
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Heavy Duty
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Black
Series
P23 Series
Load Capacity
1400 lb
ESD Conductive
No
Compatible With
P-PH-080X030/075R
Load Capacity - Maximum
1,400 lb
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
Rockwell 102E
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F

Description

Rigid, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
