  11. Plate Caster, 1400 lb. Ld Rating, Roller
Zoro Select Plate Caster, 1400 lb. Ld Rating, Roller P25S-C080R-14-CB-DL - main

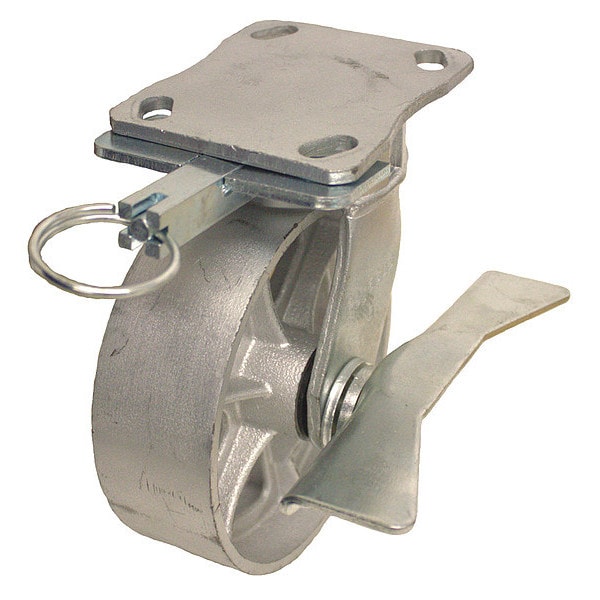

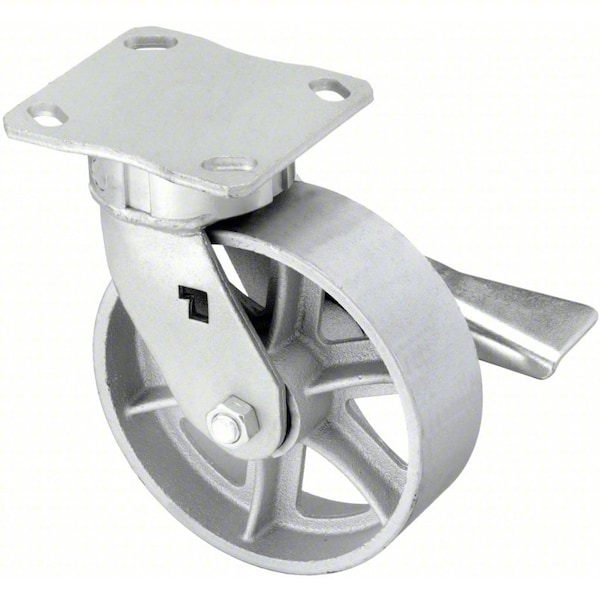

Plate Caster, 1400 lb. Ld Rating, Roller

  • Mfr # P25S-C080R-14-CB-DL

  • Zoro # G7278892

product price: $75.19
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-C080R-14-CB-DL
Zoro #
G7278892
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Swivel Radius
6-1/4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in

Details

Item
Kingpinless Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Directional Lock, Side Brake
Load Rating
1400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
180-220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
Retail, Industrial, Commercial
Features
Push/Pull Force Reduction
Standards
RoHS, ICWM
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Wheel Color
Silver
Extended Lead
No
Replacement Wheel
Mfr. No. P-C-080x020/050R
Frame Finish
Zinc Plated
Thread Guards
No
Includes
Pinch Type Brake, 4-Position Directional Lock
Includes Thread Guards
No
Swivel Construction
Kingpinless
Load Rating Range
Medium Duty
Swivel Raceway Type
Kingpinless Single Ball
Swivel Lock Type
4-Position Directional Lock
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Tread
Standard
Tread Color
Silver
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
P25 Series
Load Capacity
1400 lb
Compatible With
P-C-080X020/050R
Load Capacity - Maximum
1,250 lb
Wheel Core Type
Spoke
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Brake Location
Side
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1400 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
