Shop ZORO SELECT

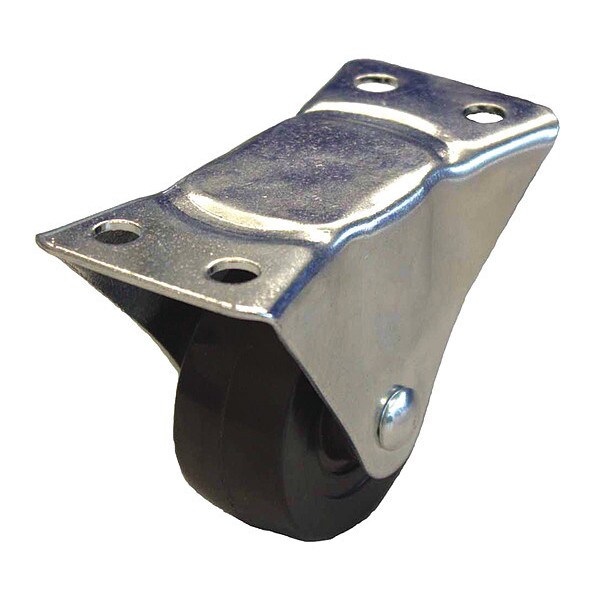

Plate Caster, 175 lb. Load Rating, Rigid

  • Mfr # P2R-R025G-P

  • Zoro # G6629758

product price:
$
4.29
/ea

Key Features

Wheel Width
1 1/16 in
Caster Brake Included
No
Number of Wheels
1
Wheel Color
Black
Application
Bakery Racks, Furniture Dollies, Laundry Carts
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P2R-R025G-P
Zoro #
G6629758
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/16 in
Overall Height
3-1/4"
Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
5/16 in
Wheel Dia.
2 1/2 in
Mounting Plate Size
2-1/8 in x 4-3/8 in
Mounting Height
3 1/4 in
Overall Wheel Width
1 1/16 in
Mounting Plate Length
2 13/16 in
Mounting Plate Thickness
3/32 in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Width
3.5 in
Bolt Hole Spacing - Length
1.063 in

Details

Caster Brake Included
No
Number of Wheels
1
Wheel Color
Black
Application
Bakery Racks, Furniture Dollies, Laundry Carts
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
1-1/16 in x 3-1/2 in
Caster Frame Material
Steel
Features
Noise Reduction
Thread Guards
No
Non-Marking
No
Item
Plate Caster
Core Color
Black
Standards
ANSI ICWM
Caster Sub-Type
Rigid
Extended Lead
No
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
D
Caster Temp. Range Available
Yes
Load Rating
175 lb
Caster Brake Type
No Brake
Load Rating Range
Light Duty
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Operating Temperature Range
-20 Degrees To 125 Degrees F
Tread Shape
Standard
Wheel Core Material
Rubber
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Plain
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Tread
Standard
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity
175 lb
Series
P2 Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Wheel Hardness Rating
80 Shore A
Load Capacity - Maximum
175 lb
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 1/2 in, Wheel Width 1 1/16 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
