  11. Plate Caster, 1750 lb. Ld Rating, Ball

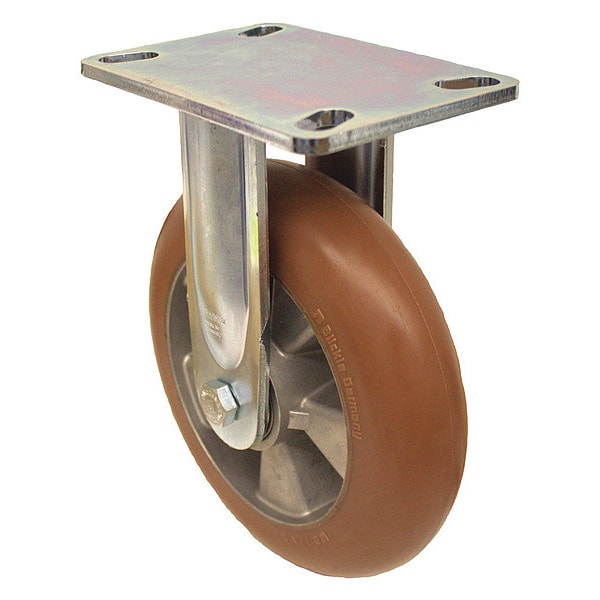

Zoro Select Plate Caster, 1750 lb. Ld Rating, Ball BHS-ALB 200K-16-CO - main

Plate Caster, 1750 lb. Ld Rating, Ball

  • Mfr # BHS-ALB 200K-16-CO

  • Zoro # G7279093

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Besthane Polyurethne
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BHS-ALB 200K-16-CO
Zoro #
G7279093
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 5/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.217 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
None- Rigid Caster
Overall Height
9-21/32in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
12 mm
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Besthane Polyurethne
Caster Brake Type
No Brake
Load Rating
1750 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Tan
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Caster Brake Included
No
Thread Guards
No
Replacement Wheel
Mfr. No. ALB 200/20K-CO
Standards
RoHS, ICWM
Extended Lead
No
Caster Temp. Range Available
Yes
Wheel Color
Brown
Features
Floor Protective, Sealed Swivel Bearing
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Includes
Extra Crowned Tread
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Aluminum
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy Duty
Load Capacity
1540 lb
Tread
Crowned
Tread Color
Brown
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
BHS 14/16 Series
Compatible With
ALB 200/20K-CO
Load Capacity - Maximum
1,765 lb
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Easy Turn, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Rigid, Plate Caster, Load Rating 1750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
