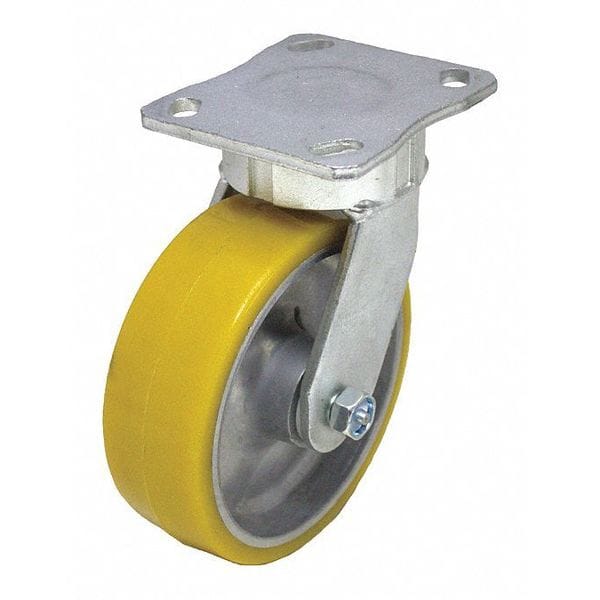

Zoro Select Plate Caster, 1760 lb. Load, Yellow Wheel P24S-UA080KP-14 - main

Plate Caster, 1760 lb. Load, Yellow Wheel

  • Mfr # P24S-UA080KP-14

  • Zoro # G5620909

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Frame Finish
Zinc Plated
Includes
Maintenance-Free Precision Ball Bearings
Extended Lead
No
Wheel Width
2 in
Swivel Radius
5-3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P24S-UA080KP-14
Zoro #
G5620909
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
5-3/4 in
Overall Height
9-1/2in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
9 1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
0.276 in
Outside Slot Spacing - Width
3 in

Details

Frame Finish
Zinc Plated
Includes
Maintenance-Free Precision Ball Bearings
Extended Lead
No
Standards
ANSI ICWM
Caster Frame Material
Steel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Features
Floor Protective, Maintenance Free, Push/Pull Force Reduction
Core Color
Silver
Thread Guards
No
Number of Wheels
1
Caster Brake Included
No
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Yellow
Item
Swivel Caster
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Caster Brake Type
No Brake
Non-Marking
Yes
Load Rating
1760 lb
Replacement Wheel
Mfr. No. P-UA-080x020/050KP
Includes Thread Guards
No
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy Duty
Wheel Core Material
Aluminum
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpinless
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Swivel Raceway Type
Precision Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Tread Color
Yellow
ESD Conductive
No
Tread
Standard
Series
P24 Series
Load Capacity
1500 lb
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
92 Shore A
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1760 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
