  6. Plate Caster, Rigid, Phenolic, 9 1/2"H

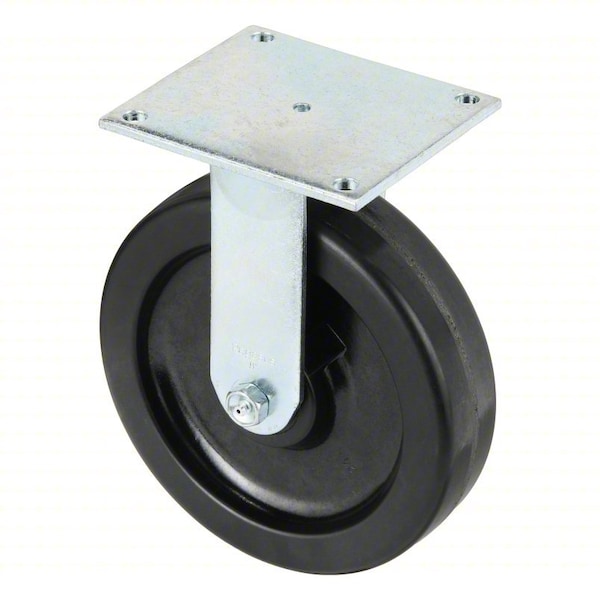

Zoro Select Plate Caster, Rigid, Phenolic, 9 1/2"H P21R-PH080R-15 - main

Plate Caster, Rigid, Phenolic, 9 1/2"H

  • Mfr # P21R-PH080R-15

  • Zoro # G2977774

product price:  $28.75
/ea

Key Features

Mounting Plate Size
5 in x 5 1/2 in
Swivel Radius
None- Rigid Caster
Mounting Plate Thickness
7/32 in
Includes Mounting Fasteners
No
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-PH080R-15
Zoro #
G2977774
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
5 in x 5 1/2 in
Swivel Radius
None- Rigid Caster
Mounting Plate Thickness
7/32 in
Wheel Width
2 in
Hub Length
2 3/16 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Wheel Dia.
8 in
Mounting Height
9 1/2 in
Overall Height
9-1/2in
Mounting Plate Width
5 in
Mounting Plate Length
5 1/2 in
Bolt Hole Spacing - Length
4.125 in
Bolt Hole Spacing - Width
4.5 in

Details

Includes Mounting Fasteners
No
Number of Wheels
1
Caster Frame Material
Steel
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
ESD Conductive
No
Wheel Bearing Material
Steel
Wheel/Tread Material
Phenolic
Wheel Core Material
Phenolic
Load Rating Range
1000 to 2999 lb
With Toe Plate
No
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Load Rating
1250 lb
NSF Listed
No
Item
Plate Caster
Frame Construction
Stamped
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Swivel Construction
Kingpin
Includes Thread Guards
No
Frame Finish
Zinc Plated
Series
Pegasus 21 Series
Number of Mounting Holes
4
Swivel Bearing Seal Type
Open
Caster Sub-Type
Rigid
Includes Spanner Bushing
Yes
Swivel Raceway Type
Single Ball
Caster Plate Hole Pattern
D
Wheel Core Type
Solid
Wheel/Tread Color
Black
Operating Temperature Range
-20 Degrees to 250 Degrees F
Frame Color
Silver
Standards
ANSI ICWM
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Hard
Caster Mounting Type
Plate
Replacement Wheel
489D68
Core Color
Black
Non-Marking
Yes
Caster Brake Type
No Brake
Features
Low Rolling Resistance
Tread Shape
Standard
System of Measurement
Inch
Load Capacity - Maximum
1,250 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Wheel Hardness Rating
102 HRE
Caster Features
Corrosion-Resistant

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
