  11. Plate Caster, 2000 lb. Load Rating

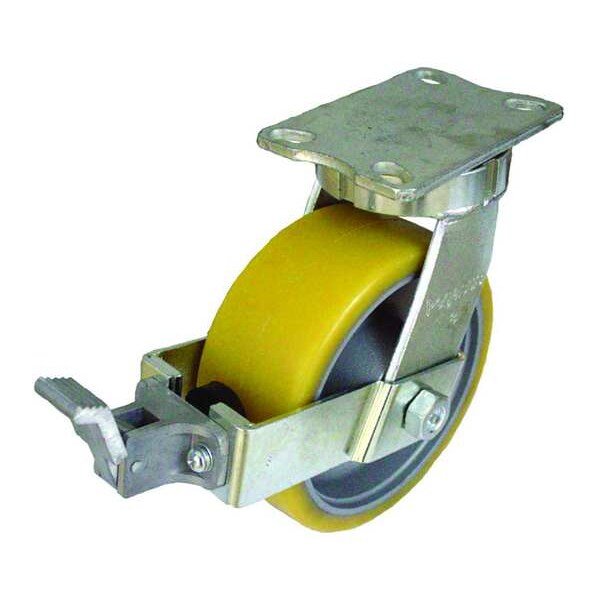

Zoro Select Plate Caster, 2000 lb. Load Rating P27S-UY060K-16-WK - main

Plate Caster, 2000 lb. Load Rating

  • Mfr # P27S-UY060K-16-WK

  • Zoro # G1619239

product price: $165.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-UY060K-16-WK
Zoro #
G1619239
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2in
Swivel Radius
4-3/8 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Bolt Hole Spacing - Length
2.438 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in

Details

Item
Kingpinless Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-UY-060x030/075K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Wheel Color
Yellow
Caster Temp. Range Available
Yes
Features
Floor Protection
Includes
Trailing End Brake
Thread Guards
No
Extended Lead
No
Caster Brake Included
Yes
Standards
RoHS, ICWM
Swivel Construction
Kingpinless
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Swivel Raceway Type
Kingpinless Single Ball
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Wheel Core Material
Cast Iron
Series
P27 Series
Load Capacity
2000 lb
Tread
Standard
Accessories
Optional: P-DL27-16 (Directional Lock)
ESD Conductive
No
Tread Color
Yellow
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
2,000 lb
Compatible With
P-UY-060X030/075K
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Rear
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
