  6. Plate Caster, 600 lb. Load, Gray Wheel

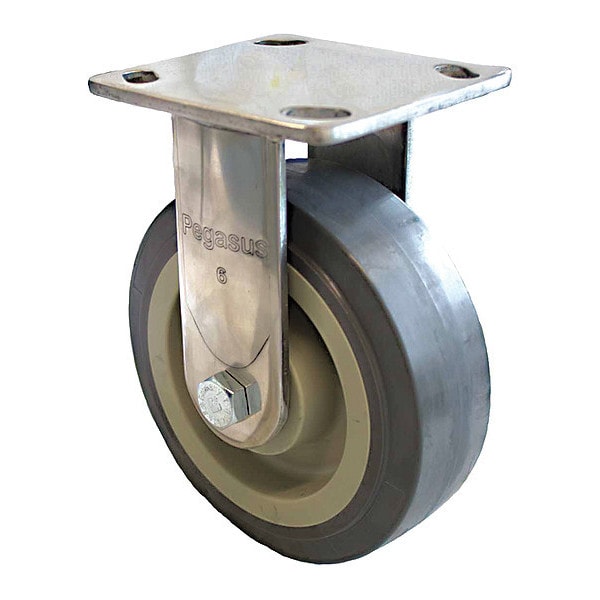

Zoro Select Plate Caster, 600 lb. Load, Gray Wheel P21RX-UP040D-14 - main

Plate Caster, 600 lb. Load, Gray Wheel

  • Mfr # P21RX-UP040D-14

  • Zoro # G1617565

product price:  $44.19
/ea

Key Features

Caster Plate Hole Pattern
B
Number of Wheels
1
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Core Color
Gray
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21RX-UP040D-14
Zoro #
G1617565
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Overall Height
5-5/8in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
15/64in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in

Details

Caster Plate Hole Pattern
B
Number of Wheels
1
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Core Color
Gray
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-UP-040X020/050D
Item
Rigid Caster
Includes
Complete Caster
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Thread Guards
No
Wheel Color
Gray
Frame Finish
Polished
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Features
Corrosion Resistance, Floor Protective
Caster Frame Material
Stainless Steel
Extended Lead
No
Standards
ANSI ICWM
Caster Brake Type
No Brake
Load Rating
600 lb
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Delrin
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Series
P21X Series
Load Capacity
600 lb
Caster Mounting Type
Plate
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Color
Gray
Caster Features
Corrosion-Resistant
Compatible With
P-UP-040X020/050D
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
600 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Wheel Bearing Material
Delrin
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
