  11. Plate Caster, 210 lb. Load Rating, Swivel

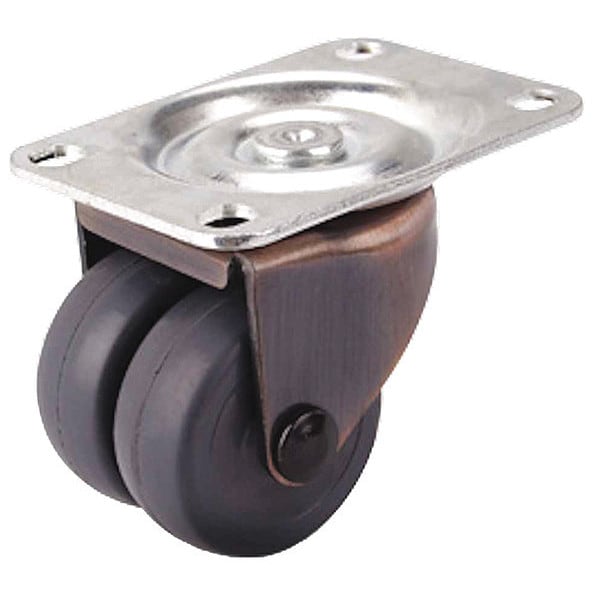

Zoro Select Plate Caster, 210 lb. Load Rating, Swivel P9S-HR020G-P-AF - main

Plate Caster, 210 lb. Load Rating, Swivel

  • Mfr # P9S-HR020G-P-AF

  • Zoro # G6873139

product price: $9.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P9S-HR020G-P-AF
Zoro #
G6873139
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
2 in
Wheel Width
13/16 in
Mounting Height
2 3/4 in
Mounting Plate Size
4in x 4-1/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Overall Height
2-3/4in
Stem Dia.
No Stem
Swivel Radius
1-7/8 in
Bolt Hole Spacing - Width
1.75 in
Bolt Hole Spacing - Length
2.938 in
Overall Wheel Width
13/16 in
For Axle Dia.
5/16 in
Mounting Plate Length
2 9/16 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
2
Outside Bolt Hole Spacing
1-3/4 in x 2-15/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-15/16 in
Caster Plate Hole Pattern
D
Caster Brake Included
No
Extended Lead
No
Features
Noise Reduction, Reduced Swivel Force
Thread Guards
No
Standards
RoHS, ICWM
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Wheel Color
Black
Application
Retail, Industrial, Commercial
Frame Finish
Polished
Load Rating Range
Light-Duty
Wheel Core Material
Rubber
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
ESD Conductive
No
Tread Color
Black
Load Capacity
210 lb
Series
P9 Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread
Standard
Load Capacity - Maximum
210 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 13/16 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
