  11. Plate Caster, 220 lb. Ld Rating, Plain

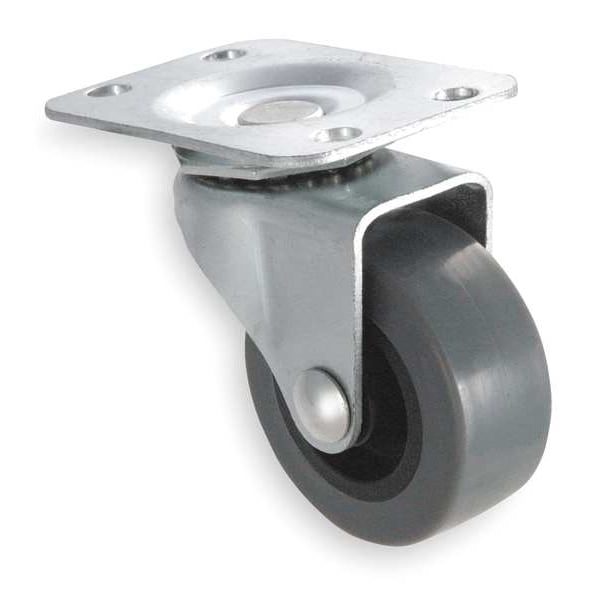

Zoro Select Plate Caster, 220 lb. Ld Rating, Plain P12S-PRP050D-12 - main

Plate Caster, 220 lb. Ld Rating, Plain

  • Mfr # P12S-PRP050D-12

  • Zoro # G9660754

product price: $20.15
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-PRP050D-12
Zoro #
G9660754
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
6-3/16in
Swivel Radius
4 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Application
Retail, Industrial, Commercial
Features
Floor Protective, Noise Reduction
Wheel Color
Gray
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Extended Lead
No
Thread Guards
No
Replacement Wheel
Mfr. No. P-PRP-050x013/038D
Standards
RoHS, ICWM, NSF
Caster Brake Included
No
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Load Capacity
325 lb
Series
P12 Series
ESD Conductive
No
Tread
Standard
Load Capacity - Maximum
325 lb
Caster Features
Debris-Resistant
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
