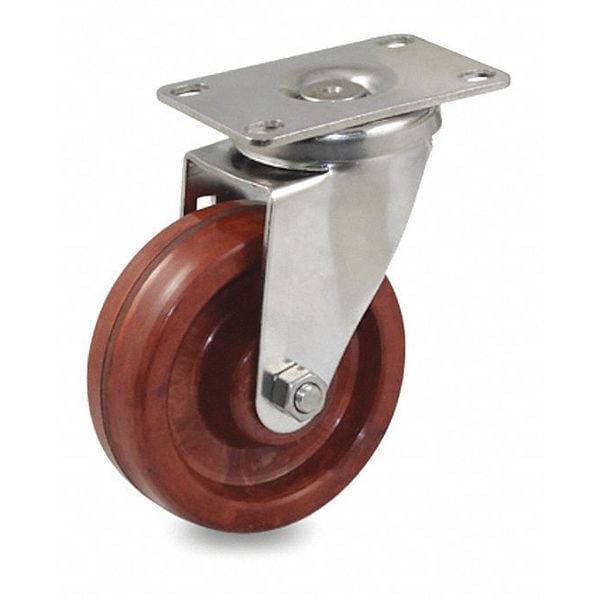

Zoro Select Plate Caster, 220 lb. Ld Rating, Swivel P12SX-HRP040G-12 - main

Plate Caster, 220 lb. Ld Rating, Swivel

  • Mfr # P12SX-HRP040G-12

  • Zoro # G5550820

product price:  $78.39
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P12SX-HRP040G-12
Zoro #
G5550820
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/16in
Swivel Radius
3 3/16 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Length
3 5/8 in
Bolt Hole Spacing - Length
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Width
2 1/2 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
3/8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Red
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Red
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Thread Guards
No
Includes
Complete Caster
Wheel Color
Red
Extended Lead
No
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Features
Corrosion Resistant
Frame Finish
Polished
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-HRP-040x013/038G
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel Core Material
Phenolic
Swivel Construction
Kingpin
Includes Thread Guards
No
Load Rating Range
Light-Duty
Tread Color
Red
Load Capacity
220 lb
Tread
Standard
Series
P12X Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
220 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
475 Degrees F
Operating Temperature Range
-20 Degrees to 475 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
