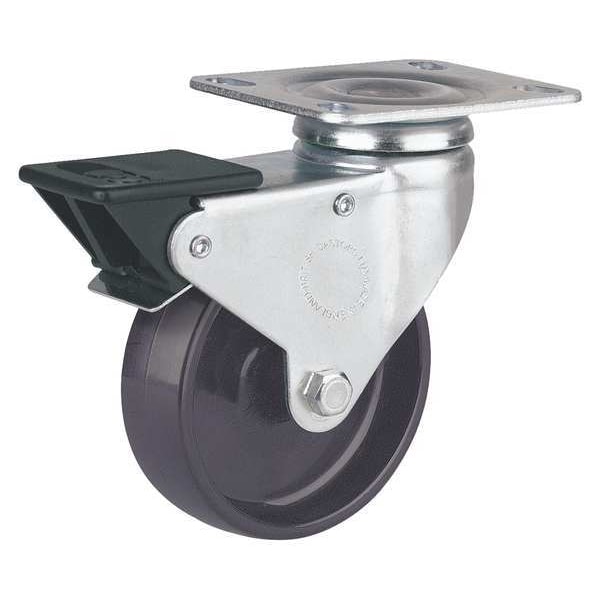

Plate Caster, Swivel, Nylon, 4 in., 330 lb.

  • Mfr # TSSV 100 BN0S TS
  • Zoro # G4396637
product price:
$
22.49
/ea

Key Features

Number of Wheels
1
Overall Height
5"
Caster Frame Material
Steel
Standards
ANSI ICWM
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSSV 100 BN0S TS
Zoro #
G4396637
UPC #
-
Country of Origin
United Kingdom

Dimensions

Overall Height
5"
Wheel Dia.
4 in
Stem Dia.
No Stem
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
3 1/8 in x 4 in
Mounting Height
5 in
Mounting Plate Length
4 in
For Axle Dia.
8 mm
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.188 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
1/8 in
Outside Slot Spacing - Width
2.375 in
Mounting Plate Width
3 1/8 in
Overall Wheel Width
35 mm

Details

Number of Wheels
1
Caster Frame Material
Steel
Standards
ANSI ICWM
Core Color
Black
Item
Plate Caster
Caster Brake Type
Total Lock
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
A
Application
General Purpose
Non-Marking
Yes
Thread Guards
No
Extended Lead
No
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Wheel Color
Black
Load Rating
330 lb
Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Brake Included
Yes
System of Measurement
Inch
Wheel Core Material
Nylon
Tread Shape
Standard
Swivel Construction
Kingpin
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Includes Thread Guards
Yes
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Plain
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
330 lb
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Brake Location
Face
Mounting Plate Shape
Rectangle
For Surface Type
Ceramic, Tile, Vinyl, Wood
Operating Temperature - Maximum
100 Degrees F
Operating Temperature Range
14 Degrees to 104 Degrees F
Operating Temperature - Minimum
15 Degrees F

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
