  11. Plate Caster, 2200 lb. Ld Rating, Ball

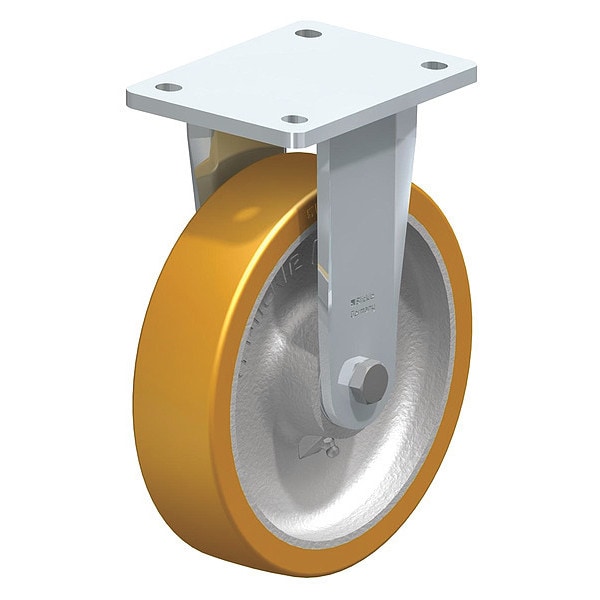

Zoro Select Plate Caster, 2200 lb. Ld Rating, Ball BO-GTH 200K - main

Plate Caster, 2200 lb. Ld Rating, Ball

  • Mfr # BO-GTH 200K

  • Zoro # G7278673

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BO-GTH 200K
Zoro #
G7278673
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 5/8 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
8 mm
Mounting Bolt Dia.
3/8 in
Overall Height
9-21/32in
Swivel Radius
None- Rigid Caster
For Axle Dia.
12 mm
Inside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Inside Slot Spacing - Width
2.969 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake
Load Rating
2200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Features
Floor Protective
Standards
RoHS, ICWM
Thread Guards
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. GTH 200/20K
Frame Finish
Zinc Plated
Extended Lead
No
Wheel Color
Yellow
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Extra-Heavy Duty
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Tread
Standard
Series
BO Series
ESD Conductive
No
Tread Color
Light Brown
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1000 kg
Compatible With
GTH 200/20K
Load Capacity - Maximum
2,205 lb
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 2200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
