  6. Swivel Plate Caster, Glass Filled Nylon, 4in, 800lb
Zoro Select Swivel Plate Caster, Glass Filled Nylon, 4in, 800lb P21SX-HNG040R-14-001 - main

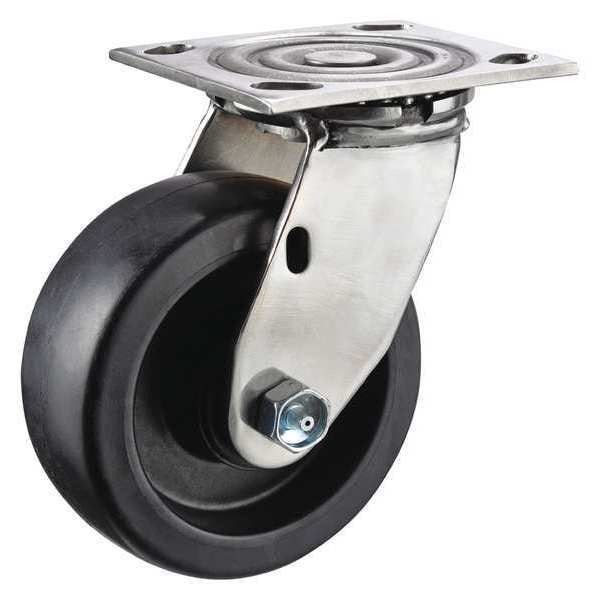

Swivel Plate Caster, Glass Filled Nylon, 4in, 800lb

  • Mfr # P21SX-HNG040R-14-001

  • Zoro # G1143502

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
Yes
Caster Frame Material
Stainless Steel
Overall Height
5-5/8in
Replacement Wheel
Mfr. No. HE0420112G
Frame Finish
Polished
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21SX-HNG040R-14-001
Zoro #
G1143502
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Wheel Width
2 in
Stem Dia.
No Stem
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
3-3/8 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in

Details

Caster Temp. Range Available
Yes
Caster Frame Material
Stainless Steel
Replacement Wheel
Mfr. No. HE0420112G
Frame Finish
Polished
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
800 lb
Item
Swivel Caster
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Black
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Caster Sub-Type
Swivel
Thread Guards
No
Number of Wheels
1
Caster Brake Included
No
Core Color
Black
Extended Lead
No
Tread Color
Black
System of Measurement
Inch
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Tread
Standard
Standards
RoHS, ICWM, NSF
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel Core Material
Glass Filled Nylon
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel/Tread Material
Glass Filled Nylon
Wheel/Tread Color
Black
ESD Conductive
No
Series
P21X Series
Load Capacity
880 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL21X-14 (Directional Lock)
Load Capacity - Maximum
880 lb
Compatible With
HE0420112G
Wheel Hardness Rating
85 shore D
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Operating Temperature Range
Up to 550 Degrees F
Operating Temperature - Maximum
550 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
