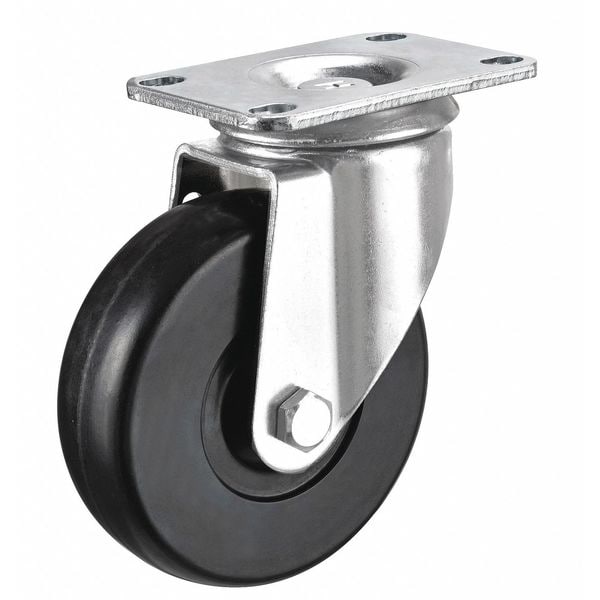

Plate Caster, 240 lb. Load Rate, 6-3/16" H

  • Mfr # P12S-R050B-P3

  • Zoro # G6880069

product price:  $17.15
/ea

Key Features

Frame Finish
Zinc Plated
Includes
Complete Caster
Caster Sub-Type
Swivel
Load Rating
200 lb
Overall Height
6-3/16"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12S-R050B-P3
Zoro #
G6880069
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-3/16"
Wheel Dia.
5 in
Wheel Width
1 1/4 in
Swivel Radius
4 in
Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
3-3/4 in x 4-3/8 in
Mounting Height
6 3/16 in
Mounting Plate Thickness
5/32 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
3/8 in
Mounting Plate Length
3 3/4 in
Inside Slot Spacing - Length
3 in

Details

Frame Finish
Zinc Plated
Includes
Complete Caster
Caster Sub-Type
Swivel
Load Rating
200 lb
Caster Brake Type
No Brake
Number of Wheels
1
Wheel Color
Black
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Thread Guards
No
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
Standards
ANSI ICWM
Item
Plate Caster
Non-Marking
No
Caster Temp. Range Available
Yes
Extended Lead
No
Core Color
Black
Replacement Wheel
Mfr. No. P-R-050x013/038B
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Rubber
Load Rating Range
Light Duty
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
P12 Series
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity
175 lb
Tread
Standard
Tread Color
Black
Wheel Hardness Rating
80 Shore A
Load Capacity - Maximum
350 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees To 125 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
