  11. Plate Caster, 240 lb. Load Rating, Swivel
Zoro Select Plate Caster, 240 lb. Load Rating, Swivel P13S-RP050D-14-SB - main

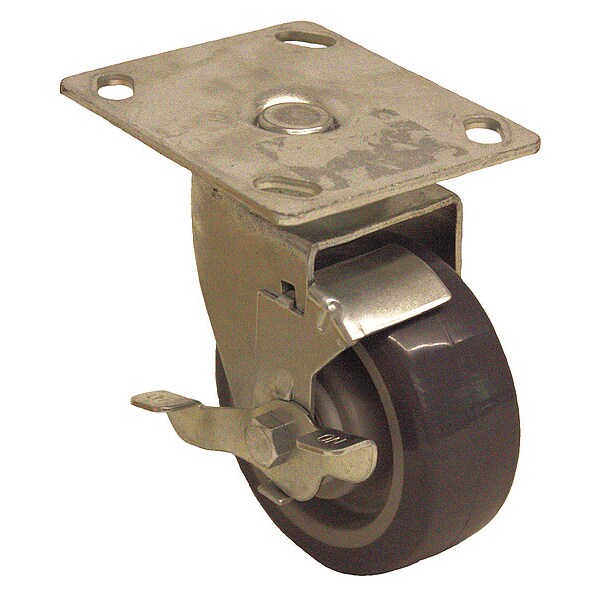

Plate Caster, 240 lb. Load Rating, Swivel

  • Mfr # P13S-RP050D-14-SB

  • Zoro # G3323776

product price: $26.55
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P13S-RP050D-14-SB
Zoro #
G3323776
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 5/16 in
Mounting Height
6 1/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.157 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/4in
Swivel Radius
3-13/16 in
Overall Wheel Width
1 5/16 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
8 mm
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Load Rating
240 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Extended Lead
No
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Features
Floor Protective, Noise Reduction
Wheel Color
Gray
Thread Guards
No
Includes
Pinch Type Brake
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Operating Temperature Range
-4 Degrees To 140 Degrees F
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
ESD Conductive
No
Series
P13 Series
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Load Capacity
240 lb
Load Capacity - Maximum
240 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
Brake Location
Side
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Delrin
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 240 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 5/16 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
