  11. Plate Caster, 240 lb. Load Rating, Swivel

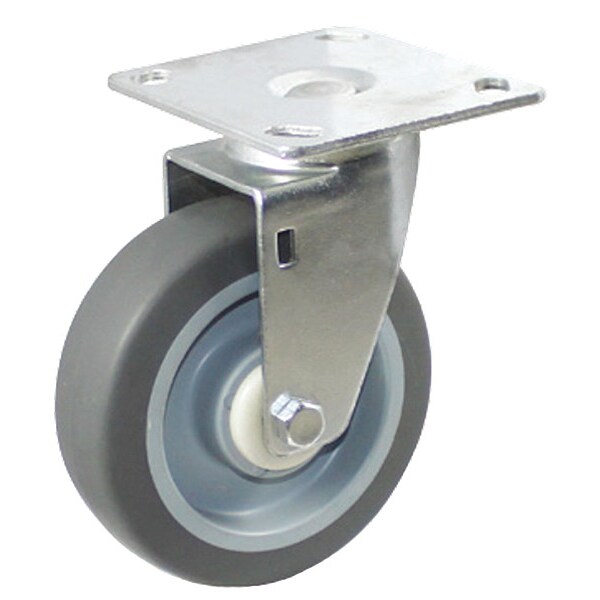

Zoro Select Plate Caster, 240 lb. Load Rating, Swivel P13S-RP050D-14 - main

Plate Caster, 240 lb. Load Rating, Swivel

  • Mfr # P13S-RP050D-14

  • Zoro # G3317065

product price: $21.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P13S-RP050D-14
Zoro #
G3317065
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 5/16 in
Mounting Height
6 1/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.157 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-13/16 in
Overall Height
6-1/4in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
1 5/16 in
For Axle Dia.
8 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
240 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Caster Brake Included
No
Caster Temp. Range Available
Yes
Extended Lead
No
Wheel Color
Gray
Frame Finish
Zinc Plated
Thread Guards
No
Standards
RoHS, ICWM
Features
Floor Protective, Noise Reduction
Application
Retail, Industrial, Commercial
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Operating Temperature Range
-4 Degrees To 140 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Color
Gray
Series
P13 Series
Load Capacity
240 lb
Tread
Standard
Load Capacity - Maximum
240 lb
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 240 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 5/16 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
