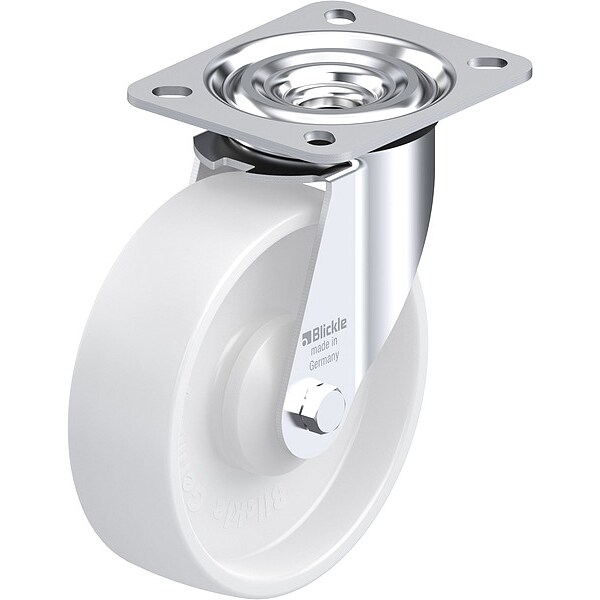

Zoro Select Plate Caster, Swivel, 5 7/8"H L-PO 125KA - main

Plate Caster, Swivel, 5 7/8"H

  • Mfr # L-PO 125KA

  • Zoro # G814810922

product price:  $56.45
/ea

Key Features

Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Wheel Dia.
127 mm
System of Measurement
Metric
Swivel Construction
Kingpin
Number of Mounting Holes
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PO 125KA
Zoro #
G814810922
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
127 mm
Mounting Bolt Dia.
9 mm
Wheel Width
40 mm
Mounting Height
149 mm
Mounting Plate Width
86 mm
Inside Slot Spacing - Width
55 mm
Hub Length
38 mm
Inside Slot Spacing - Length
76 mm
Mounting Plate Length
100 mm
Outside Slot Spacing - Length
80 mm
Overall Wheel Width
40 mm
Outside Slot Spacing - Width
60 mm
For Axle Dia.
10 mm
Mounting Plate Thickness
3 mm

Details

Item
Plate Caster
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
System of Measurement
Metric
Swivel Construction
Kingpin
Number of Mounting Holes
4
Wheel/Tread Color
White
Caster Mounting Type
Plate
Core Color
White
Caster Frame Material
Steel
Series
PO
Non-Marking
Yes
Number of Wheels
1
Caster Brake Type
No Brake
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Includes Thread Guards
Yes
Load Capacity - Maximum
1,380 lb
Operating Temperature - Minimum
-20 Degrees C
NSF Listed
No
Wheel Bearing Type
Ball
Wheel Hardness Rating
70 Shore D
Operating Temperature - Maximum
80 Degrees C
Wheel Bearing Material
Steel
Swivel Bearing Seal Type
Sealed
Tread Shape
Standard
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Swivel Raceway Type
Double Ball
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant
Frame Construction
Pressed
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Wheel Dia. 127 mm, Wheel Width 40 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
