  11. Plate Caster, 2425 lb. Ld Rating, Ball

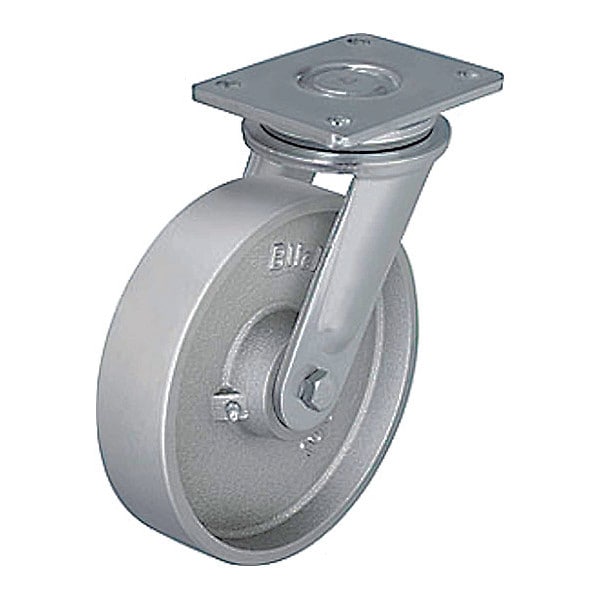

Zoro Select Plate Caster, 2425 lb. Ld Rating, Ball LO-G 200K - main

Plate Caster, 2425 lb. Ld Rating, Ball

  • Mfr # LO-G 200K

  • Zoro # G9463601

product price: $179.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LO-G 200K
Zoro #
G9463601
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 5/8 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
8 mm
Mounting Bolt Dia.
3/8 in
Swivel Radius
160 mm
Overall Height
9-21/32in
Mounting Plate Width
110 mm
Mounting Plate Length
140 mm
Inside Slot Spacing - Width
75 mm
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
4.125 in
Outside Slot Spacing - Width
80 mm
For Axle Dia.
12 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Load Rating
2425 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
180-220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Thread Guards
No
Caster Brake Included
No
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. G 200/20K
Caster Temp. Range Available
Yes
Standards
RoHS, ICWM
Wheel Color
Silver
Extended Lead
No
Application
Retail, Industrial, Commercial
Features
Push/Pull Force Reduction
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Swivel Construction
Kingpin
Series
LO Series
Tread Color
Silver
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
1100 kg
Load Capacity - Maximum
2,425 lb
Compatible With
G 200/20K
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Caster Features
Corrosion-Resistant
Operating Temperature Range
-100 Degrees To 600 Degrees C
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 2425 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
