  11. Plate Caster, 250 lb. Ld Rating, Swivel
Shop All Plate Casters
Zoro Select

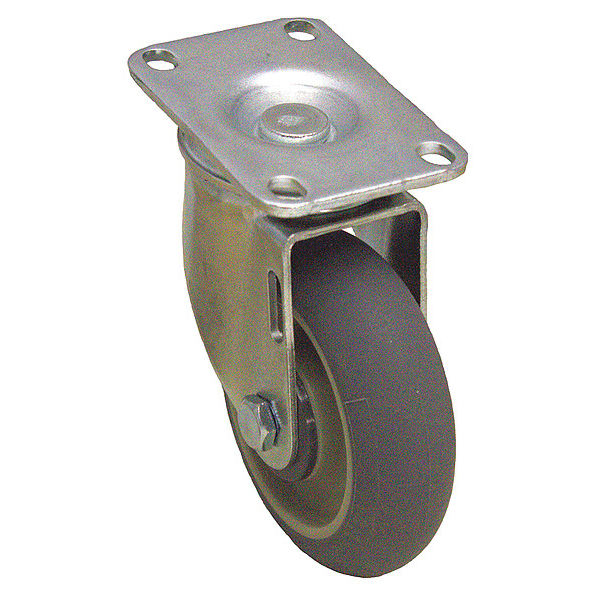

Plate Caster, 250 lb. Ld Rating, Swivel

original price: $6.75
5% off
new price: $6.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Donut Tread
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 5-1/8 in
Wheel Dia. 3 in
Wheel Width 1-1/4 in
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2 in x 3-5/8 in
Swivel Radius 3-1/4 in
Mounting Height 5 1/8 in
Mounting Plate Size 2 1/2 in x 3 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light Duty
Caster Sub-Type Swivel
Caster Wheel Shape Donut Tread
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 250 lb
Number of Wheels 1
Application Retail, Industrial, Commercial
Caster Product Group Swivel Caster
Features Noise Reduction
Thread Guards Yes
Caster Swivel Lock Type No Lock Included
Item Swivel Plate Caster
Caster Wheel Bearings Precision Ball
Caster Raceway Double Ball
Caster Min. Temp. -45 Degrees F
Non-Marking Yes
Core Color Gray
Wheel Color Gray
Caster Temp. Range Available Yes
Caster Plate Hole Pattern B
Extended Lead No
Includes Thread Guards
Caster Plate Thickness 0.118 in
Plate Caster Bolt Hole Pattern B
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Caster Core Material Polypropylene
Caster Frame Material Steel
Standards RoHS, ICWM, NSF
Frame Finish Zinc Plated
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Max. Temp. 180 Degrees F
Durometer 70 Shore A
Caster Brake Type No Brake Included
Caster Temp. Range -4 Degrees To 140 Degrees F
Replacement Wheel Mfr. No. P-RCP-040x013/038K
Swivel Construction Kingpin
Includes Thread Guards Yes
Wheel/Tread Hardness 85-95 Shore A
Wheel/Tread Hardness Rating Firm
Tread Shape Crowned
Wheel Core Material Polypropylene
Swivel Lock Type No Lock Included
Wheel/Tread Material Rubber
Mounting Plate Bolt Hole Pattern C
Number of Mounting Holes 4
Swivel Raceway Type Double Ball
Wheel Bearing Type Precision Ball
Wheel/Tread Color Gray
System of Measurement Inch
Load Capacity 300 lb
ESD Conductive No
Caster Break Type No Brake Included
Resistant To High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type Plate
Tread Crowned
Series P12 Series
Tread Color Gray

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Plastic, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Donut
