  11. Swivel Plate Caster, Nylon, 3-1/2 in., 400 lb, Gry
Shop All Plate Casters
Zoro Select

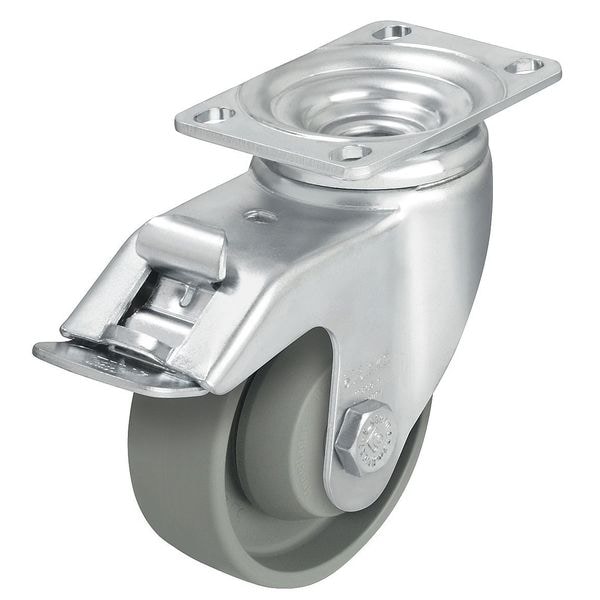

Swivel Plate Caster, Nylon, 3-1/2 in., 400 lb, Gry

product price: $17.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Heavy Duty Nylon
See all product information

Product Information

Dimensions

Overall Height 4-11/16 in
Wheel Dia. 3-1/2 in
Wheel Width 1-1/4 in
Stem Dia. No Stem
Plate Size 2-1/2" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2 in x 3-5/8 in
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Height 4 11/16 in
Swivel Radius 3-3/16 in

Details

Caster Brake Included Yes
Caster Load Rating Range Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Heavy Duty Nylon
Load Rating 330 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Frame Finish Zinc Plated
Caster Product Group Swivel Caster With Brake
Caster Brake Type Total Lock Brake
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Extended Lead No
Caster Plate Thickness 0.138 in
Thread Guards No
Core Color Gray
Caster Plate Hole Pattern C
Plate Thickness 1/8"
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Swivel Lock Type Total-Lock
Application Retail, Industrial, Commercial, Corrosion Resistance
Caster Raceway Double Ball
Frame Material Steel
Caster Temp. Range Available No
Replacement Wheel Mfr. No. POG 89/15G
Durometer 70 Shore D
Features American Standard Plate Size
Wheel Color Gray
Item Swivel Plate Caster With Brake
Caster Frame Material Steel
Plate Caster Bolt Hole Pattern C
Caster Core Material Nylon
Caster Wheel Bearings Plain
Tread Color Gray
Includes Stop-Fix Total-Lock Brake
Tread Standard
Non-Marking Yes
System of Measurement Inch
Caster Temp. Range -15 Degrees To 175 Degrees F
Standards RoHS, ICWM
Caster Mounting Type Plate
Wheel Bearing Type Plain
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Hard
Wheel/Tread Hardness 70 Shore D
Swivel Lock Type Total Lock
Mounting Plate Bolt Hole Pattern C
Number of Mounting Holes 4
Includes Thread Guards No
Tread Shape Standard
Wheel Core Material Nylon
Swivel Raceway Type Double Ball
Wheel/Tread Material Nylon
Wheel/Tread Color Gray
Caster Min. Temp. -20 Degrees F
Caster Max. Temp. 180 Degrees F
Caster Break Type Stop Fix Brake (Total Lock)
Resistant To High Chemical Resistance To Many Aggressive Substances
Accessories Optional: RI-03.12 (Directional Lock)
Load Capacity 330 lb
Series L Series
ESD Conductive No

Description

Swivel, Standard Plate Caster, Load Rating 330 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
