  11. Plate Caster, 2550 lb. Load, Red Wheel

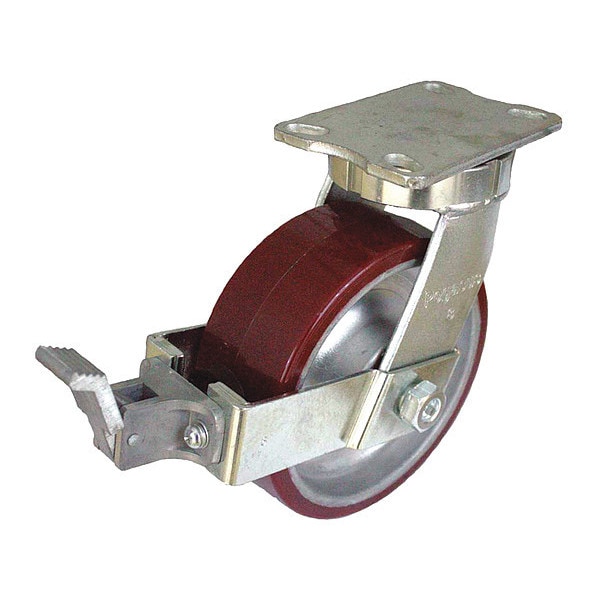

Zoro Select Plate Caster, 2550 lb. Load, Red Wheel P27S-URA080K-16-WK - main

Plate Caster, 2550 lb. Load, Red Wheel

  • Mfr # P27S-URA080K-16-WK

  • Zoro # G6540480

product price: $209.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-URA080K-16-WK
Zoro #
G6540480
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/8in
Swivel Radius
6-1/16 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Width
4 1/2 in
Overall Wheel Width
3 in
Mounting Plate Length
6 1/4 in
Bolt Hole Spacing - Length
2.438 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Kingpinless Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2550 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Extended Lead
No
Includes
Trailing End Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Wheel Color
Red
Standards
RoHS, ICWM
Features
Floor Protective
Frame Finish
Zinc Plated
Thread Guards
No
Replacement Wheel
Mfr. No. P-URA-080x030/075K
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Kingpinless Single Ball
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Aluminum
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Tread
Standard
Series
P27 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
2500 lb
Tread Color
Red
Accessories
Optional: P-DL27-16 (Directional Lock)
Load Capacity - Maximum
2,500 lb
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 2550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
