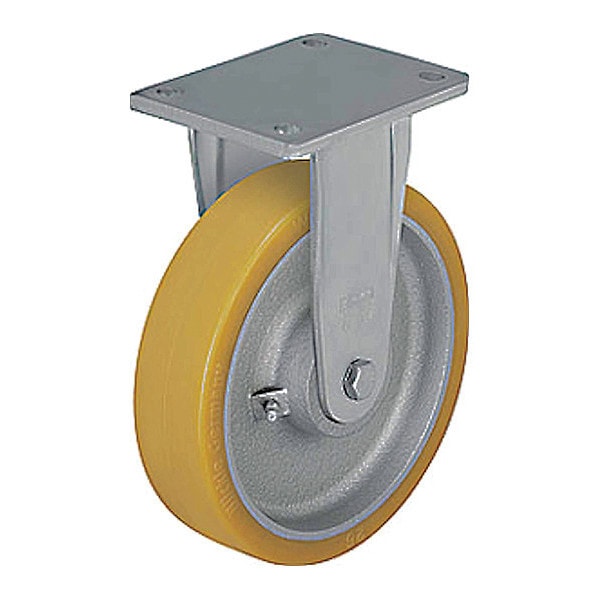

Plate Caster, 2645 lb. Ld Rating, Ball

  • Mfr # BO-GTH 250K

  • Zoro # G7278649

product price:  $272.99
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
80 mm x 105 mm
Non-Marking
Yes
Caster Sub-Type
Rigid
Caster Brake Included
No
Inside Bolt Hole Spacing
75 mm x 105 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BO-GTH 250K
Zoro #
G7278649
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
10 in
Overall Height
11-39/64in
Wheel Width
2 3/8 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Mounting Plate Size
110 mm x 140 mm
Mounting Height
11 5/8 in
Mounting Plate Length
4 5/16 in
Inside Slot Spacing - Length
4.125 in
For Axle Dia.
12 mm
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Thickness
8 mm
Inside Slot Spacing - Width
2.969 in
Overall Wheel Width
2 3/8 in

Details

Item
Rigid Caster
Outside Bolt Hole Spacing
80 mm x 105 mm
Non-Marking
Yes
Caster Sub-Type
Rigid
Caster Brake Included
No
Inside Bolt Hole Spacing
75 mm x 105 mm
Wheel Color
Yellow
Caster Plate Hole Pattern
C
Features
Floor Protective
Extended Lead
No
Number of Wheels
1
Caster Frame Material
Steel
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Load Rating
2645 lb
Core Color
Gray
Replacement Wheel
Mfr. No. GTH 250/25K
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Thread Guards
No
Standards
DIN EN 12533, ANSI ICWM
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Load Rating Range
Extra-Heavy Duty
Wheel/Tread Material
Extrathane Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Metric
Tread
Standard
Load Capacity
1200 kg
Tread Color
Light Brown
Series
BO Series
Caster Mounting Type
Plate
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
2,645 lb
Compatible With
GTH 250/25K
Wheel Hardness Rating
92 Shore A
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 2645 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 2 3/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
