  11. Plate Caster, 308 lb. Load Rating, Swivel
Zoro Select Plate Caster, 308 lb. Load Rating, Swivel 400K71 - main

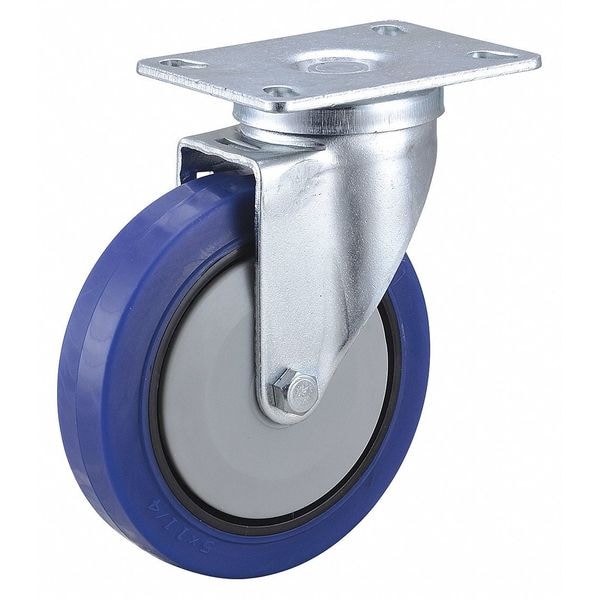

Plate Caster, 308 lb. Load Rating, Swivel

  • Mfr # 400K71

  • Zoro # G3700930

product price: $27.15
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
400K71
Zoro #
G3700930
UPC #
190735905029
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 1/8 in x 4 in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3 7/8 in
Overall Height
6in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
305 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Thread Guards
Yes
Wheel Color
Blue
Caster Brake Included
No
Replacement Wheel
16D118
Extended Lead
No
Caster Temp. Range Available
Yes
Application
General Purpose
Frame Finish
Zinc Plated
Caster Stem Type
No Stem/Plate Included
Standards
ISO 9001
Wheel/Tread Hardness Rating
Soft
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Load Capacity - Maximum
305 lb
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 305 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
