Shop ZORO SELECT

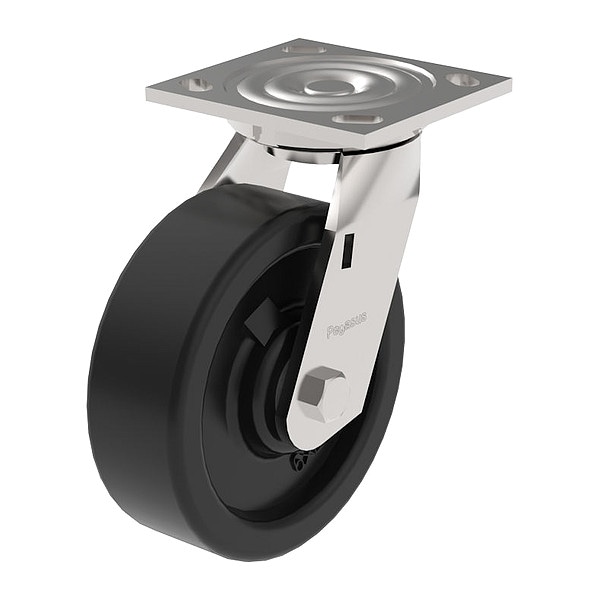

Swivel Plt Cstr, Polypropylene, 8in, 850 lb

  • Mfr # P21S-PB080R-14
  • Zoro # G6188585
product price:
$
40.99
/ea

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Load Rating
850 lb
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PB080R-14
Zoro #
G6188585
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2"
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
9 1/2 in
Swivel Radius
6-5/8 in
Outside Slot Spacing - Width
3 in
Bolt Hole Spacing - Length
2.625 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
7/32 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
850 lb
Thread Guards
No
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Item
Plate Caster
Caster Plate Hole Pattern
B
Extended Lead
No
Core Color
Black
Caster Brake Included
No
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. P-PB-080X020/050R
Wheel Color
Black
Non-Marking
Yes
Frame Finish
Zinc Plated
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Tread
Standard
Tread Color
Black
Caster Brake Type
No Brake
System of Measurement
Inch
Standards
RoHS, ICWM, NSF
Caster Mounting Type
Plate
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Includes Thread Guards
No
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Accessories
Optional: P-DL21-14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
900 lb
Series
P21 Series
ESD Conductive
No
Wheel Hardness Rating
60 Shore D
Compatible With
P-PB-080X020/050R
Load Capacity - Maximum
900 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Maintenance Free
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 850 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
