  6. Rigid Plate Caster, TPR, 8 in., 675 lb.

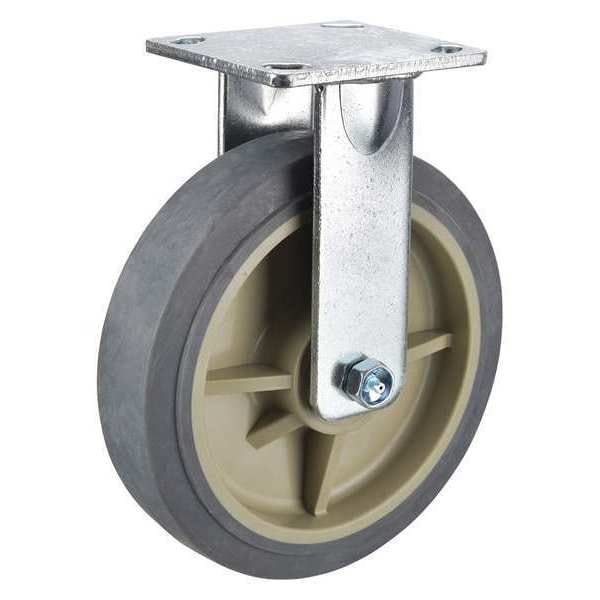

Zoro Select Rigid Plate Caster, TPR, 8 in., 675 lb. P21R-PRP080K-14 - main

Rigid Plate Caster, TPR, 8 in., 675 lb.

  • Mfr # P21R-PRP080K-14

  • Zoro # G1048415

product price:  $41.95
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P21R-PRP080K-14
Zoro #
G1048415
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
1/4in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Brake Type
No Brake
Load Rating
600 lb
Caster Mounting Type
Plate
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Thread Guards
No
Wheel Color
Gray
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Extended Lead
No
Standards
ANSI ICWM
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-RP-080x020/050K
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Thermoplastic Rubber
Tread
Standard
Tread Color
Gray
Load Capacity
600 lb
Series
P21 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
600 lb
Compatible With
P-RP-080X020/050K
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
