  11. Plate Caster, 5" Wheel Dia., 1000 lb., Blk
Shop All Plate Casters
Zoro Select

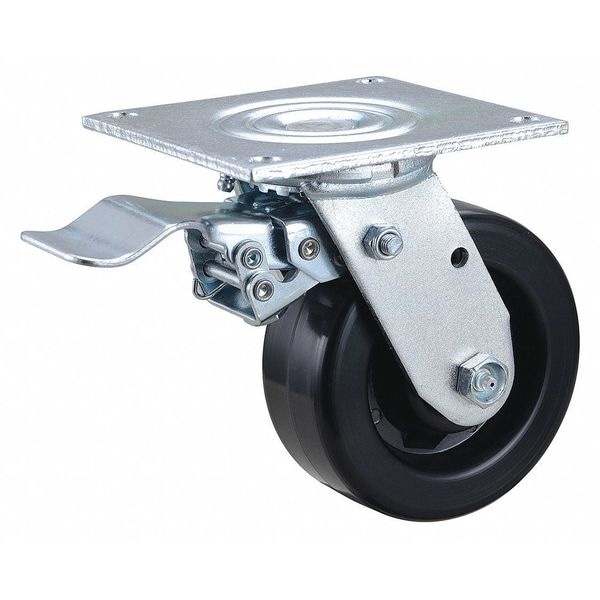

Plate Caster, 5" Wheel Dia., 1000 lb., Blk

original price: $22.29
3% off
new price: $21.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Medium-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Phenolic
See all product information

Product Information

Dimensions

Overall Height 6-1/2"
Wheel Dia. 5 in
Wheel Width 2 in
Mounting Bolt Dia. 3/8 in
Plate Size 5" x 5-1/2"
Caster Plate Size 5" x 5-1/2"
Mounting Height 6 1/2 in
Mounting Plate Size 5 in x 5 1/2 in

Details

Caster Brake Included Yes
Caster Load Rating Range Medium-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Phenolic
Load Rating 1000 lb
Number of Wheels 1
Caster Brake Type Total Lock Brake
Item Standard Plate Caster
Wheel Color Black
Caster Plate Hole Pattern D
Non-Marking Yes
Caster Frame Material Steel
Caster Temp. Range -40 Degrees to 250 Degrees F
Core Color Black
Caster Min. Temp. -40 Degrees F
Caster Temp. Range Available No
Plate Caster Bolt Hole Pattern D
Thread Guards No
Extended Lead No
Frame Finish Zinc Plated
Caster Swivel Lock Type Total Lock
Inside Bolt Hole Spacing 4-1/8 in x 4-1/2 in
Caster Max. Temp. 250 Degrees F
Caster Raceway Double Ball
Plate Thickness 7/32"
Outside Bolt Hole Spacing 4-1/8 in x 4-1/2 in
Application General Purpose
Frame Material Steel
Caster Core Material Phenolic
Standards ANSI/ICWM
Caster Wheel Bearings Roller
Caster Product Group Swivel Caster with Total Lock
Durometer 85 shore D
Caster Plate Thickness 7/32"
Swivel Construction Kingpin
Wheel/Tread Hardness 85 Shore D
Wheel Bearing Type Roller
Wheel Core Material Phenolic
Load Rating Range 1000 to 2999 lb
Swivel Lock Type Total Lock
Number of Mounting Holes 4
Mounting Plate Bolt Hole Pattern D
Includes Thread Guards No
Tread Shape Standard
Swivel Raceway Type Double Ball
Wheel/Tread Hardness Rating Hard
Wheel/Tread Material Phenolic
Wheel/Tread Color Black

Description

Swivel, Standard Plate Caster, Load Rating 1000 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
