Shop ZORO SELECT

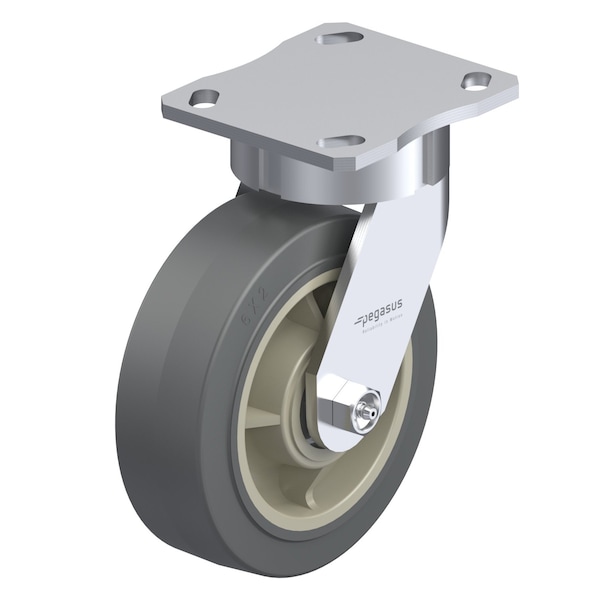

Plate Caster, 350 lb. Load Rate, 5-5/8" H

  • Mfr # P25S-PRP040R-14
  • Zoro # G3339268
product price:
$
44.79
/ea

Key Features

Overall Height
5-5/8"
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel Core Material
Polyolefin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P25S-PRP040R-14
Zoro #
G3339268
UPC #
-
Country of Origin
China
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel Core Material
Polyolefin
Swivel Raceway Type
Single Ball
Load Rating Range
Medium Duty
Tread Shape
Standard
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Tread
Standard
Thread Guards
No
Standards
ANSI ICWM
Caster Brake Included
No
System of Measurement
Inch
Caster Sub-Type
Swivel
Item
Plate Caster
Accessories
Optional: P-DL25-14 (Directional Lock)
Load Rating
300 lb
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Plate Hole Pattern
B
Number of Wheels
1
Core Color
Beige
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Type
No Brake
Caster Temp. Range Available
Yes
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P25 Series
ESD Conductive
No
Includes
Complete Caster
Replacement Wheel
Mfr. No. P-RP-040x020/050R
Load Capacity
300 lb
Wheel Color
Gray
Tread Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Extended Lead
No
Non-Marking
Yes
Load Capacity - Maximum
300 lb
Wheel Hardness Rating
65 Shore A
Mounting Hole Type
Slot
Caster Features
Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F

Dimensions

Overall Height
5-5/8"
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4-1/2 in
Wheel Dia.
4 in
Wheel Width
2 in
Swivel Radius
3 3/16 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Thickness
1/4 in
Overall Wheel Width
2 in

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
