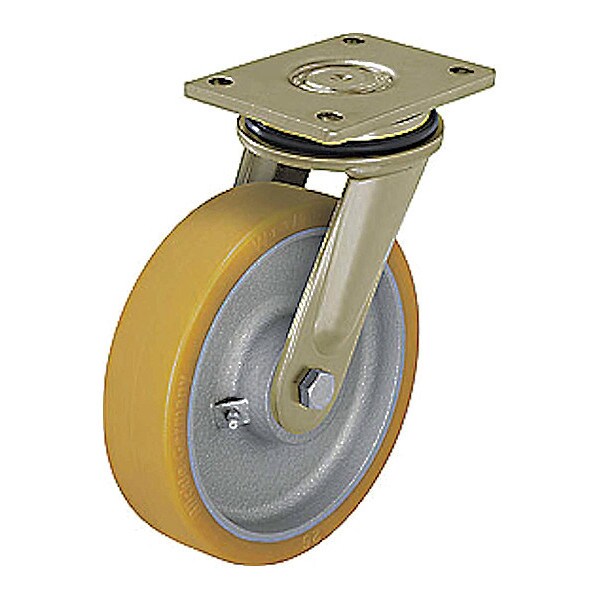

Zoro Select Plate Caster, 3525 lb. Ld Rating, Ball LS-GTH 202K - main

Plate Caster, 3525 lb. Ld Rating, Ball

  • Mfr # LS-GTH 202K

  • Zoro # G7279568

product price:  $337.99
/ea
Free Shipping & Returns

Key Features

Standards
DIN EN 12533, ANSI ICWM
Caster Plate Hole Pattern
D
Features
Floor Protective
Thread Guards
No
Extended Lead
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GTH 202K
Zoro #
G7279568
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
10in
Mounting Bolt Dia.
9/16 in
Swivel Radius
6 1/2 in
Wheel Dia.
8 in
Wheel Width
3 1/8 in
Mounting Plate Size
140 mm x 175 mm
Mounting Height
10 1/16 in
Bolt Hole Spacing - Width
4.125 in
Overall Wheel Width
3 1/8 in
Bolt Hole Spacing - Length
5.5 in
For Axle Dia.
16 mm
Mounting Plate Length
5 1/2 in
Mounting Plate Thickness
15 mm

Details

Standards
DIN EN 12533, ANSI ICWM
Caster Plate Hole Pattern
D
Features
Floor Protective
Item
Swivel Caster
Thread Guards
No
Extended Lead
No
Caster Brake Included
No
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Replacement Wheel
Mfr. No. GTH 202/25K
Non-Marking
Yes
Core Color
Gray
Wheel Color
Yellow
Number of Wheels
1
Outside Bolt Hole Spacing
105 mm x 140 mm
Caster Frame Material
Steel
Load Rating
3525 lb
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
105 mm x 140 mm
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Load Rating Range
Extra-Heavy Duty
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Extrathane Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Metric
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Light Brown
ESD Conductive
No
Series
LS Series
Load Capacity
1600 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
3,525 lb
Wheel Hardness Rating
92 Shore A
Compatible With
GTH 202/25K
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 3525 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 1/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
