  11. Plate Caster, 3965 lb. Ld Rating, Ball

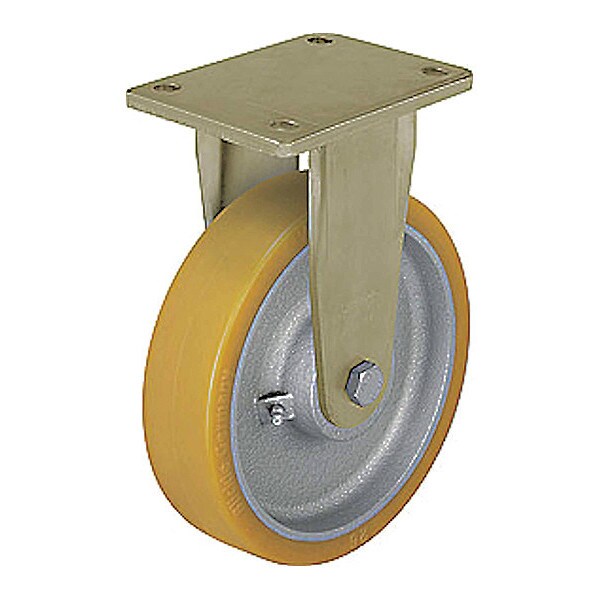

Zoro Select Plate Caster, 3965 lb. Ld Rating, Ball BS-GTH 300K - main

Plate Caster, 3965 lb. Ld Rating, Ball

  • Mfr # BS-GTH 300K

  • Zoro # G9463732

product price: $364.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BS-GTH 300K
Zoro #
G9463732
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
12 in
Wheel Width
2 3/8 in
Mounting Height
14 in
Mounting Plate Size
140 mm x 175 mm
Mounting Plate Thickness
10 mm
Mounting Bolt Dia.
9/16 in
Overall Height
14in
Swivel Radius
None- Rigid Caster
Mounting Plate Length
5 1/2 in
Bolt Hole Spacing - Length
5.5 in
Bolt Hole Spacing - Width
4.125 in
Overall Wheel Width
2 3/8 in
For Axle Dia.
16 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Extrathane Polyurethane
Caster Brake Type
No Brake
Load Rating
3950 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
105 mm x 140 mm
Inside Bolt Hole Spacing
105 mm x 140 mm
Caster Plate Hole Pattern
D
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Thread Guards
No
Wheel Color
Yellow
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. GTH 300/30K
Caster Brake Included
No
Extended Lead
No
Features
Floor Protective
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Load Rating Range
Extra-Heavy Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Series
BS Series
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
1800 kg
Tread Color
Light Brown
Load Capacity - Maximum
3,970 lb
Compatible With
GTH 300/30K
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F

Description

Rigid, Plate Caster, Load Rating 3950 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 2 3/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
