  11. Swivel NSF-Listed Plate Caster, 600 lb., 75 Shore A
Shop All Plate Casters
Zoro Select

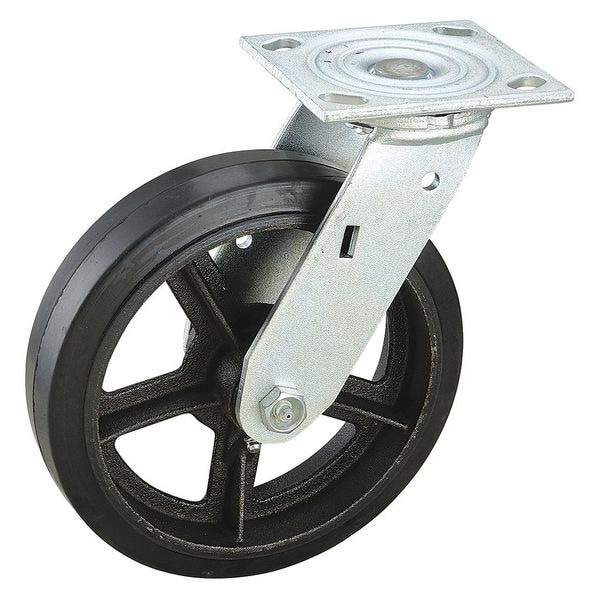

Swivel NSF-Listed Plate Caster, 600 lb., 75 Shore A

product price: $37.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Rubber
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Stem Dia. No Stem
Plate Size 4" x 4-1/2"
Caster Plate Size 4" x 4-1/2"
Mounting Bolt Dia. 7/16 in
Mounting Height 9 1/2 in
Mounting Plate Size 4 in x 4 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Rubber
Load Rating 600 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Temp. Range -40 Degrees to 180 Degrees F
Extended Lead No
Non-Marking No
Durometer 75 Shore A
Caster Raceway Double Ball
Caster Wheel Bearings Roller
Caster Product Group Swivel Caster
Caster Plate Thickness 1/4"
Caster Temp. Range Available Yes
Core Color Black
Caster Core Material Cast Iron
Caster Min. Temp. -40 Degrees F
Frame Material Steel
Frame Finish Zinc Plated
Caster Plate Hole Pattern B
Plate Thickness 1/4"
Thread Guards No
Wheel Color Black
Caster Swivel Lock Type No Lock Included
Standards ANSI/ICWM,NSF
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Application Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Plate Caster Bolt Hole Pattern B
Caster Frame Material Steel
Inside Bolt Hole Spacing 3 in x 3 in
Item NSF-Listed Sanitary Plate Caster
Replacement Wheel Mfr. No. MR0820112
Caster Max. Temp. 180 Degrees F
Caster Brake Type No Brake Included
Includes Thread Guards No
Wheel/Tread Hardness 75 Shore A
Mounting Plate Bolt Hole Pattern B
Swivel Construction Kingpin
Tread Shape Standard
Number of Mounting Holes 4
Load Rating Range 300 to 999 lb
Wheel/Tread Hardness Rating Soft
Wheel Bearing Type Roller
Swivel Lock Type No Lock Included
Wheel Core Material Cast Iron
Swivel Raceway Type Double Ball
Wheel/Tread Material Rubber
Wheel/Tread Color Black

Description

Swivel, NSF-Listed Sanitary Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Cast Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
