  11. Plate Caster, 4" Wheel dia, 1-3/8" Wheel W

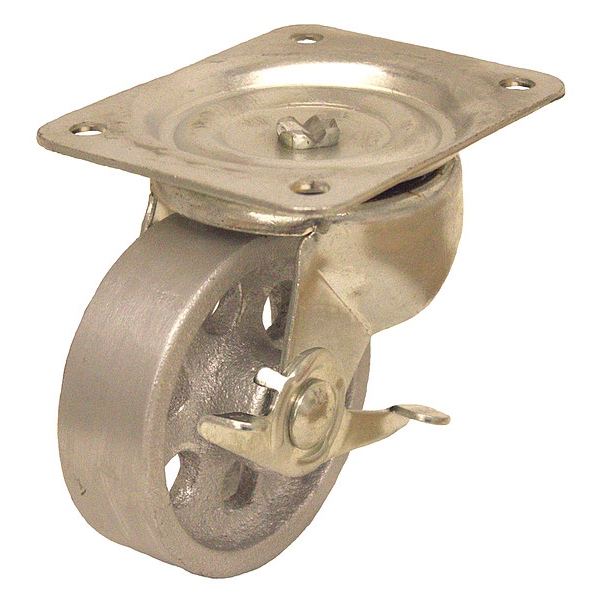

Zoro Select Plate Caster, 4" Wheel dia, 1-3/8" Wheel W P2S-C040G-P-SB - main

Plate Caster, 4" Wheel dia, 1-3/8" Wheel W

  • Mfr # P2S-C040G-P-SB

  • Zoro # G3317318

product price: $28.55
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2S-C040G-P-SB
Zoro #
G3317318
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 5/16 in
Mounting Height
4 15/16 in
Mounting Plate Size
4 in x 5-1/8 in
Mounting Plate Thickness
0.079 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-7/16 in
Overall Height
5in
Bolt Hole Spacing - Width
3 in
Bolt Hole Spacing - Length
4 in
Overall Wheel Width
1 5/16 in
Mounting Plate Length
4 1/16 in
For Axle Dia.
5/16 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Side Brake
Load Rating
250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Silver
Wheel Hardness Rating
145 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 4 in
Inside Bolt Hole Spacing
3 in x 4 in
Caster Plate Hole Pattern
D
Standards
RoHS, ICWM
Thread Guards
No
Wheel Color
Silver
Extended Lead
No
Features
Pull Forces, Reduced Push
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Includes
Pinch Type Brake
Wheel Core Material
Cast Iron
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
Light Duty
Swivel Construction
Kingpin
Operating Temperature Range
Up To 800 Degrees F
Series
P2 Series
ESD Conductive
No
Load Capacity
250 lb
Tread Color
Silver
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity - Maximum
250 lb
Brake Location
Side
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Hole
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 5/16 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
