  11. Plate Caster, 440 lb. Ld Rating, Swivel

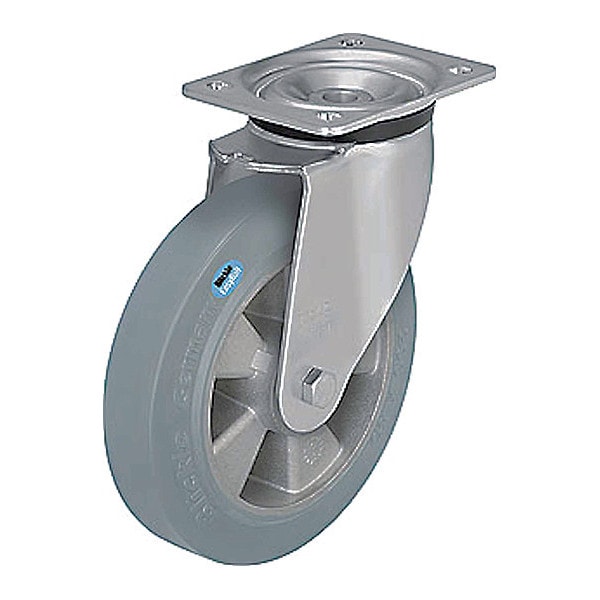

Zoro Select Plate Caster, 440 lb. Ld Rating, Swivel LK-ALEV 100K-14-SG - main

Plate Caster, 440 lb. Ld Rating, Swivel

  • Mfr # LK-ALEV 100K-14-SG

  • Zoro # G5579450

product price: $55.25
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LK-ALEV 100K-14-SG
Zoro #
G5579450
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 5/8 in
Mounting Height
5 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in
Mounting Bolt Dia.
3/8 in
Overall Height
5-1/8in
Swivel Radius
3-3/4 in
Mounting Plate Length
4 in
For Axle Dia.
10 mm
Inside Slot Spacing - Length
3 in
Overall Wheel Width
1 5/8 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Load Rating
440 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Gray
Thread Guards
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Caster Brake Included
No
Standards
RoHS, ICWM
Features
Noise Reduction
Includes
Complete Caster
Extended Lead
No
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. ALEV 100/15K-SG
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Load Rating Range
Medium Duty
Includes Thread Guards
No
Swivel Construction
Kingpin
Series
LK Series
Tread
Standard
Tread Color
Gray
ESD Conductive
No
Load Capacity
440 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity - Maximum
440 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 440 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 5/8 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
