  11. Plate Caster, 500 lb. Load, Black Wheel

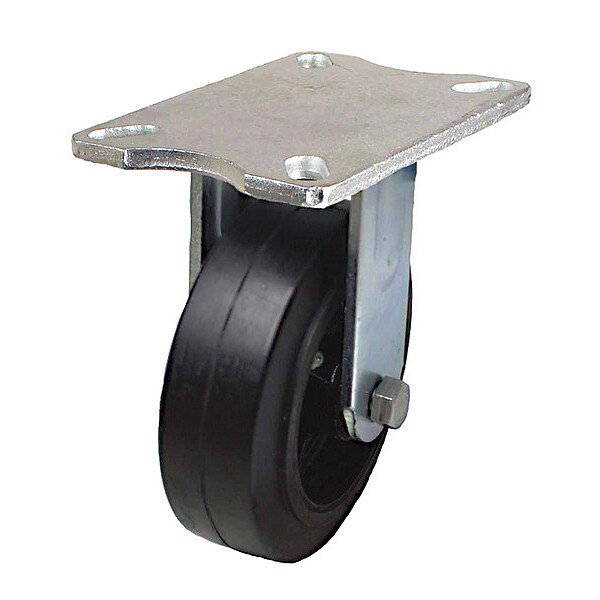

Zoro Select Plate Caster, 500 lb. Load, Black Wheel P25S-RY060R-16 - main

Plate Caster, 500 lb. Load, Black Wheel

  • Mfr # P25S-RY060R-16

  • Zoro # G6553887

product price: $55.59
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-RY060R-16
Zoro #
G6553887
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-9/16 in
Overall Height
7-1/2in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
4 1/2 in
Bolt Hole Spacing - Length
2.438 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Width
3.375 in
Overall Wheel Width
2 in

Details

Item
Kingpinless Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
No Brake
Load Rating
500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Features
Noise Reduction
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Thread Guards
No
Caster Brake Included
No
Includes
Complete Caster
Application
Retail, Industrial, Commercial
Extended Lead
No
Wheel Color
Black
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Includes Thread Guards
No
Swivel Construction
Kingpinless
Load Rating Range
Medium Duty
Swivel Raceway Type
Kingpinless Single Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Cast Iron
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Accessories
Optional: P-DL25-16 (Directional Lock)
Load Capacity
600 lb
Tread Color
Black
Series
P25 Series
Tread
Standard
Load Capacity - Maximum
550 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Spoke
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees To 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
