  11. Plate Caster, 5400 lb. Load Rate, 8" H

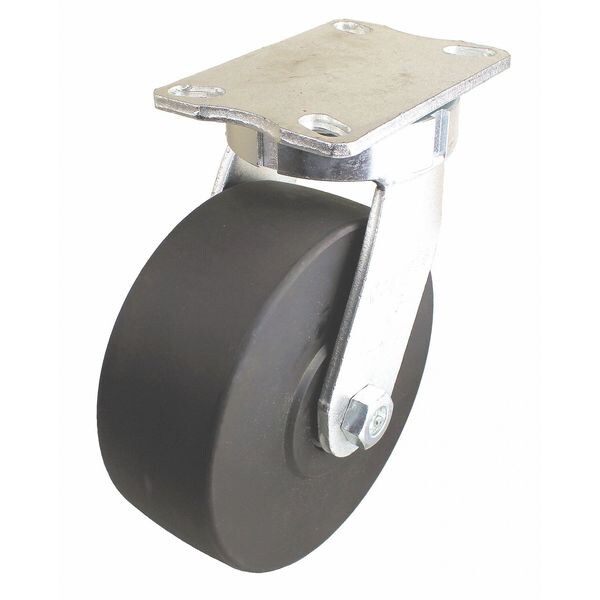

Zoro Select Plate Caster, 5400 lb. Load Rate, 8" H P27S-NMB060K-18 - main

Plate Caster, 5400 lb. Load Rate, 8" H

  • Mfr # P27S-NMB060K-18

  • Zoro # G3339240

product price: $171.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-NMB060K-18
Zoro #
G3339240
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 in
Mounting Plate Size
5-1/4in x 7-1/4in
Mounting Plate Thickness
3/8in
Mounting Bolt Dia.
1/2 in
Overall Height
8in
Swivel Radius
4-3/8 in
Bolt Hole Spacing - Length
3.375 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
4.125 in
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Width
3.375 in
Overall Wheel Width
3 in
Mounting Plate Width
5 1/4 in
Mounting Plate Length
7 1/4 in
Inside Slot Spacing - Length
5.25 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
4100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Extended Lead
No
Application
Retail, Industrial, Commercial, Corrosion Resistance
Includes
Complete Caster
Caster Temp. Range Available
Yes
Wheel Color
Black
Frame Finish
Zinc Plated
Thread Guards
No
Caster Brake Included
No
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. P-NMB-060x030/075K
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpinless
Includes Thread Guards
No
Wheel Core Material
Nylon
Load Rating Range
Heavy-Duty
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Single Ball
ESD Conductive
No
Tread Color
Black
Load Capacity
4100 lb
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P27 Series
Accessories
Optional: P-DL27-18 (Directional Lock)
Load Capacity - Maximum
5,400 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
220 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 220 Degrees F

Description

Swivel, Plate Caster, Load Rating 4100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
