  6. Plate Caster, 550 lb. Load, Black Wheel

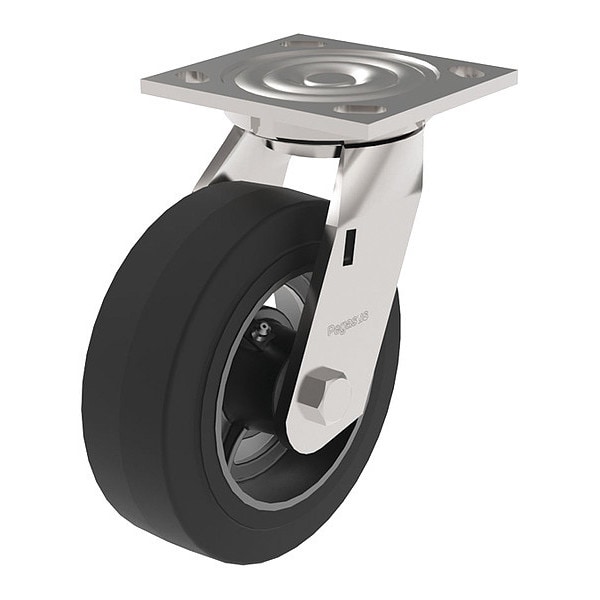

Zoro Select Plate Caster, 550 lb. Load, Black Wheel P21S-RY060R-16 - main

Plate Caster, 550 lb. Load, Black Wheel

  • Mfr # P21S-RY060R-16

  • Zoro # G6268950

product price:  $38.39
/ea

Key Features

Number of Wheels
1
Extended Lead
No
Non-Marking
No
Caster Frame Material
Steel
Replacement Wheel
Blickle Series
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-RY060R-16
Zoro #
G6268950
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
5 in
Overall Height
7-1/2in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Mounting Height
7 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Bolt Hole Spacing - Length
2.438 in
Overall Wheel Width
2 in
Mounting Plate Length
6 1/4 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
0.236 in

Details

Number of Wheels
1
Extended Lead
No
Non-Marking
No
Caster Frame Material
Steel
Replacement Wheel
Blickle Series
Caster Temp. Range Available
Yes
Thread Guards
No
Features
Noise Reduction
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
A
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Load Rating
550 lb
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Gray
Includes
Complete Caster
Item
Swivel Caster
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Caster Brake Type
No Brake
Wheel Color
Black
Load Rating Range
Medium Duty
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Cast Iron
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Solid Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Accessories
Optional: P-DL21-16 (Directional Lock)
Load Capacity
550 lb
Series
P21 Series
ESD Conductive
No
Caster Mounting Type
Plate
Wheel Hardness Rating
65 Shore A
Compatible With
Blickle Series
Load Capacity - Maximum
550 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Spoke
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
