  11. Plt Cstr, Kngpnlss Swvl, Poly, 8", 1500 lb

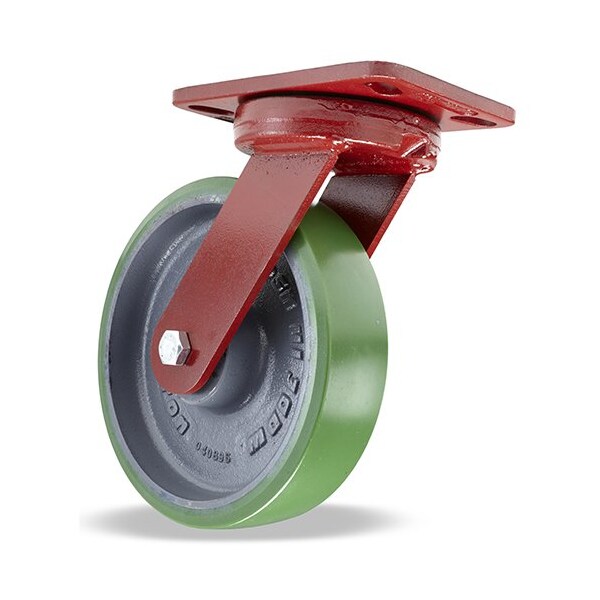

Zoro Select Plt Cstr, Kngpnlss Swvl, Poly, 8", 1500 lb S-ZFHS-8DB-4SL-FB - main

Plt Cstr, Kngpnlss Swvl, Poly, 8", 1500 lb

  • Mfr # S-ZFHS-8DB-4SL-FB

  • Zoro # G9261152

product price: $261.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Kingpinless Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Cam
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-ZFHS-8DB-4SL-FB
Zoro #
G9261152
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16in
Mounting Bolt Dia.
1/2 in
Overall Height
9-3/4in

Details

Item
Plte Caster
Caster Sub-Type
Kingpinless Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Cam
Load Rating
1500 lb
Wheel Bearing Type
Ball
Wheel Hardness Rating
90 Shore A
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 3/8 in x 5 1/4 in
Inside Bolt Hole Spacing
2 7/16 in x 4 15/16 in
Caster Plate Hole Pattern
A
Replacement Wheel
4DU70
Caster Brake Included
Yes
Frame Finish
Enamel
Extended Lead
No
Features
Sealed Swivel Bearing
Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Wheel Color
Green
Thread Guards
No
Caster Temp. Range Available
Yes
Includes
Swivel Lock, Brake
Standards
ICWM
Load Rating Range
Medium
Swivel Raceway Type
Single Ball
Wheel Core Material
Polyurethane
Swivel Lock Type
4-Position Directional Lock
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Kingpinless Swivel, Plte Caster, Load Rating 1500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Cam, Tread Shape Standard
