  11. Plate Caster, 550 lb. Load Rating

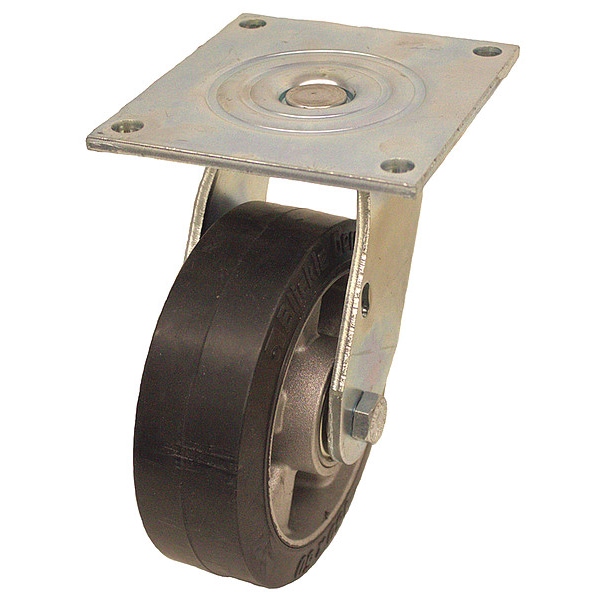

Zoro Select Plate Caster, 550 lb. Load Rating P21S-ALEV 127K-15 - main

Plate Caster, 550 lb. Load Rating

  • Mfr # P21S-ALEV 127K-15

  • Zoro # G2147934

product price: $73.25
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 15/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-ALEV 127K-15
Zoro #
G2147934
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 15/16 in
Wheel Width
2 in
Mounting Height
6 7/16 in
Mounting Plate Size
5in x 5-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Swivel Radius
4-3/16 in
Bolt Hole Spacing - Length
4.5 in
For Axle Dia.
1/2 in
Bolt Hole Spacing - Width
4.125 in
Mounting Plate Length
5 in
Overall Wheel Width
2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
550 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Caster Brake Included
No
Wheel Color
Black
Caster Temp. Range Available
Yes
Application
Retail, Industrial, Commercial
Extended Lead
No
Thread Guards
No
Features
Noise Reduction
Replacement Wheel
Mfr. No. ALEV 125/15K
Wheel Core Material
Aluminum
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Soft
Series
P21 Series
Accessories
Optional: P-DL21-15 (Directional Lock) (Directional Lock)
ESD Conductive
No
Tread
Standard
Load Capacity
550 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Load Capacity - Maximum
550 lb
Compatible With
ALEV 125/15K
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Hole
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 15/16 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
