  6. Plate Caster, 600 lb. Ld Rating, Gy Wheel

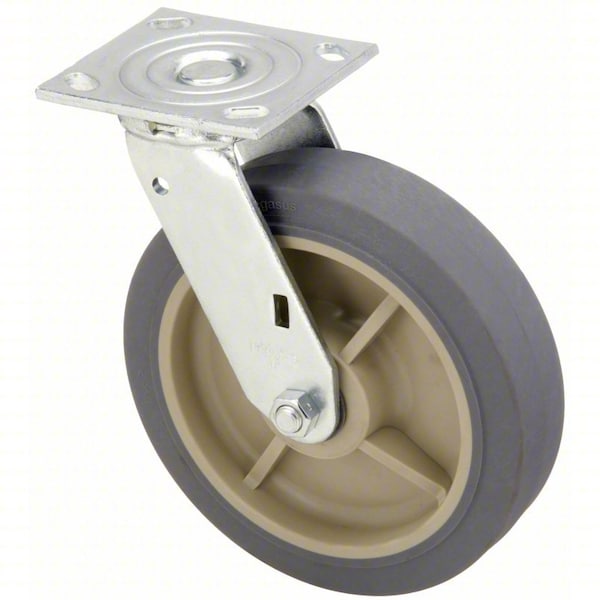

Zoro Select Plate Caster, 600 lb. Ld Rating, Gy Wheel P21S-PRP080R-14-DL - main

Plate Caster, 600 lb. Ld Rating, Gy Wheel

  • Mfr # P21S-PRP080R-14-DL

  • Zoro # G6532257

product price:  $29.69
/ea

Key Features

Overall Height
9-1/2in
Includes Thread Guards
No
Swivel Construction
Kingpin
Mounting Plate Size
4 in x 4-1/2 in
Wheel Core Material
Polypropylene
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-PRP080R-14-DL
Zoro #
G6532257
UPC #
-
Country of Origin
China

Dimensions

Overall Height
9-1/2in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
9 1/2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Swivel Radius
6-5/8 in
Wheel Width
2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
0.236 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in

Details

Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Polypropylene
Tread Shape
Standard
Load Rating Range
Medium Duty
Operating Temperature Range
-4 Degrees To 140 Degrees F
Swivel Lock Type
4-Position Directional Lock
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Core Color
Gray
Standards
ANSI ICWM
Tread Color
Gray
Caster Mounting Type
Plate
System of Measurement
Inch
Load Rating
600 lb
Extended Lead
No
Caster Frame Material
Steel
Thread Guards
No
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
ESD Conductive
No
Caster Temp. Range Available
Yes
Includes
Complete Caster with Directional Lock
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Brake Type
Directional Lock
Load Capacity
600 lb
Inside Bolt Hole Spacing
3 in x 3 in
Tread
Standard
Number of Wheels
1
Replacement Wheel
Mfr. No. P-RP-080x020/050R
Wheel Color
Gray
Frame Finish
Zinc Plated
Non-Marking
Yes
Features
Floor Protective, Noise Reduction
Caster Brake Included
No
Item
Swivel Caster With Directional-Lock
Series
P21 Series
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
90 Shore A
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
