  6. Plate Caster, 600 lb. Ld Rating, Roller
Zoro Select Plate Caster, 600 lb. Ld Rating, Roller P21R-RY080R-15 - main

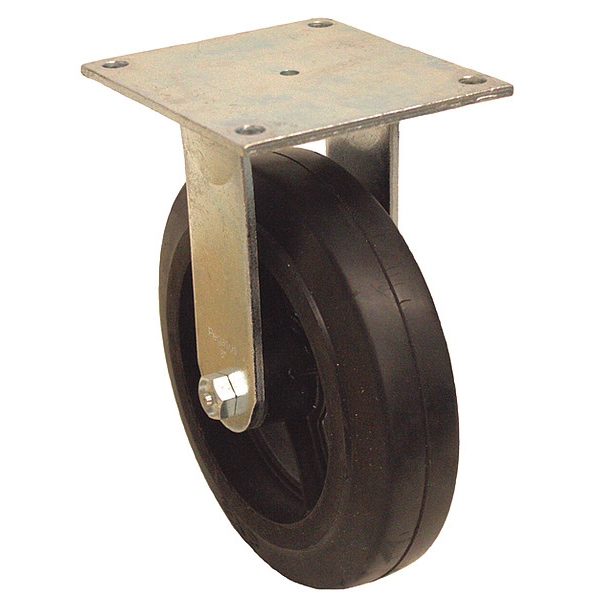

Plate Caster, 600 lb. Ld Rating, Roller

  • Mfr # P21R-RY080R-15

  • Zoro # G3317336

product price:  $35.49
/ea

Key Features

Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Frame Material
Steel
Swivel Radius
None- Rigid Caster
Number of Wheels
1
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-RY080R-15
Zoro #
G3317336
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Mounting Plate Size
5 in x 5-1/2 in
Mounting Height
9 1/2 in
Mounting Plate Thickness
0.236 in
Bolt Hole Spacing - Length
4.125 in
For Axle Dia.
1/2 in
Mounting Plate Length
5 in
Bolt Hole Spacing - Width
4.5 in
Overall Wheel Width
2 in

Details

Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Frame Material
Steel
Number of Wheels
1
Core Color
Gray
Item
Rigid Caster
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
D
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Extended Lead
No
Wheel Color
Black
Standards
ANSI ICWM, NSF Listed
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Thread Guards
No
Non-Marking
No
Load Rating
600 lb
Replacement Wheel
Mfr. No. P-RY-080x020/050R
Caster Brake Included
No
Features
Noise Reduction
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Medium Duty
Wheel Bearing Type
Roller
Tread Shape
Standard
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Solid Rubber
Wheel/Tread Color
Black
System of Measurement
Inch
Tread
Standard
ESD Conductive
No
Series
P21 Series
Caster Mounting Type
Plate
Load Capacity
600 lb
Tread Color
Black
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Compatible With
P-RY-080X020/050R
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
65 Shore A
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Spoke
Mounting Hole Type
Hole
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees To 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
