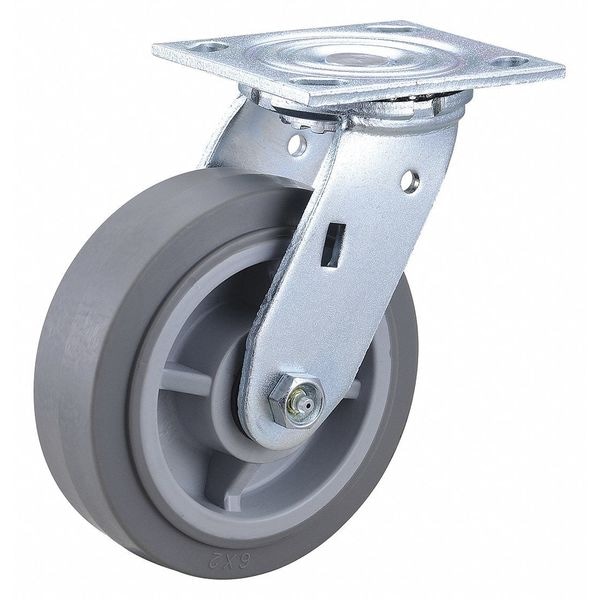

Plate Caster, 6" Wheel Dia., 75 Shore A

product price: $15.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 7-1/2"
Wheel Dia. 6 in
Wheel Width 2 in
Caster Plate Size 4" x 4-1/2"
Mounting Bolt Dia. 3/8 in
Plate Size 4" x 4-1/2"
Swivel Radius 5 in
Mounting Height 7 1/2 in
Mounting Plate Size 4 in x 4 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 450 lb
Number of Wheels 1
Caster Plate Thickness 7/32"
Caster Plate Hole Pattern B
Caster Raceway Double Ball
Caster Product Group Swivel Caster
Caster Swivel Lock Type No Lock Included
Application General Purpose
Non-Marking Yes
Plate Thickness 7/32"
Standards ANSI/ICWM
Caster Min. Temp. -40 Degrees F
Durometer 75 Shore A
Caster Frame Material Steel
Plate Caster Bolt Hole Pattern B
Core Color Gray
Item Standard Plate Caster
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Caster Core Material Polyolefin
Caster Max. Temp. 175 Degrees F
Wheel Color Gray
Frame Finish Zinc Plated
Caster Temp. Range -40 Degrees to 175 Degrees F
Frame Material Steel
Extended Lead No
Caster Wheel Bearings Roller
Inside Bolt Hole Spacing 3 in x 3 in
Caster Temp. Range Available No
Thread Guards No
Caster Brake Type No Brake Included
Wheel Bearing Type Roller
Includes Thread Guards No
Wheel/Tread Hardness Rating Soft
Mounting Plate Bolt Hole Pattern B
Wheel Core Material Plastic
Tread Shape Standard
Swivel Construction Kingpin
Wheel/Tread Hardness 75 Shore A
Swivel Raceway Type Double Ball
Number of Mounting Holes 4
Swivel Lock Type No Lock Included
Load Rating Range 300 to 999 lb
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Swivel, Standard Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
