  11. Plate Caster, 600 lb. Load, Black Wheel
Zoro Select Plate Caster, 600 lb. Load, Black Wheel P21S-RY080KP-16-WB-DL - main

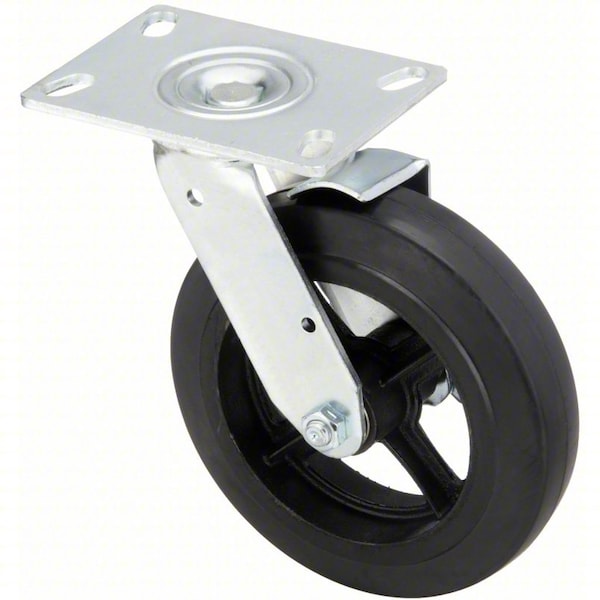

Plate Caster, 600 lb. Load, Black Wheel

  • Mfr # P21S-RY080KP-16-WB-DL

  • Zoro # G7267309

product price: $61.59
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-RY080KP-16-WB-DL
Zoro #
G7267309
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2in
Swivel Radius
6-5/8 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in

Details

Item
Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Solid Rubber
Caster Brake Type
Directional Lock, Side Brake
Load Rating
600 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Caster Brake Included
Yes
Includes
Strap Type Brake, 4-Position Directional Lock
Wheel Color
Black
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. P-RY-080x020/050R
Standards
RoHS, ICWM, NSF
Caster Temp. Range Available
Yes
Features
Master Lock, Noise Reduction
Extended Lead
No
Frame Finish
Zinc Plated
Thread Guards
No
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Load Rating Range
Medium Duty
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Cast Iron
Swivel Lock Type
4-Position Directional Lock
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
600 lb
ESD Conductive
No
Series
P21 Series
Tread Color
Black
Compatible With
Blickle Series
Load Capacity - Maximum
600 lb
Brake Location
Side
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Wheel Core Type
Spoke
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
