  11. Swivel Plate Caster, Nylon, 4 in., 3300 lb.
Shop All Plate Casters
Zoro Select

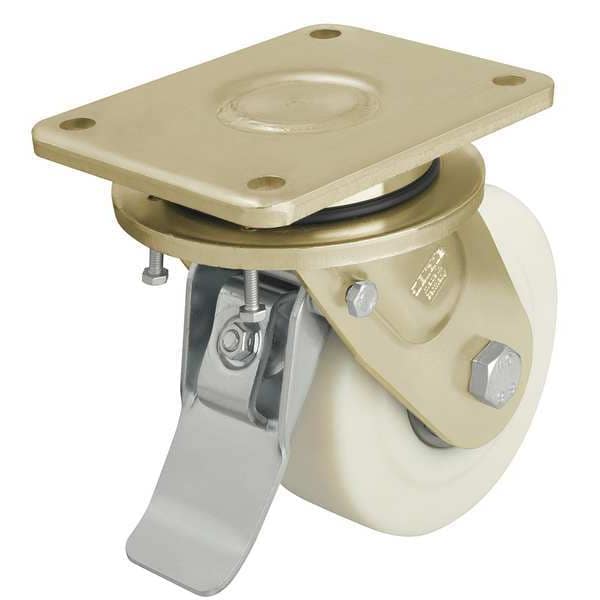

Swivel Plate Caster, Nylon, 4 in., 3300 lb.

product price: $217.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Extra-Heavy Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Extra Heavy Duty Cast Nylon
See all product information

Product Information

Dimensions

Overall Height 145 mm
Wheel Dia. 100 mm
Wheel Width 55 mm
Stem Dia. No Stem
Plate Size 4-5/16" x 5-1/2"
Mounting Bolt Dia. M10
Caster Plate Size 110 mm x 140 mm
Mounting Height 5 11/16 in
Mounting Plate Size 4 5/16 in x 5 1/2 in
Swivel Radius 100 mm

Details

Caster Brake Included Yes
Caster Load Rating Range Extra-Heavy Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Extra Heavy Duty Cast Nylon
Load Rating 3300 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Product Group Swivel Caster With Brake
Caster Plate Thickness 8 mm
Caster Temp. Range Available No
Extended Lead No
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Core Material Nylon
Caster Plate Hole Pattern D
Frame Finish Zinc Plated, Yellow Passivated
Caster Frame Material Steel
Replacement Wheel Mfr. No. GSPO 101/25K
Frame Material Steel
Inside Bolt Hole Spacing 75 mm x 105 mm
Caster Swivel Lock Type Total-Lock
Wheel Color Beige
Durometer 80 Shore D
Standards RoHS, ICWM
Caster Wheel Bearings Precision Ball
Caster Raceway Single Ball/Tapered Roller Bearing
Item Swivel Plate Caster With Brake
Core Color White
Plate Thickness 0.313"
Thread Guards No
Caster Brake Type Total Lock Brake
Plate Caster Bolt Hole Pattern D
Outside Bolt Hole Spacing 80 mm x 105 mm
Includes Stop-Top Total-Lock Brake
Caster Temp. Range -25 Degrees To 80 Degrees C
System of Measurement Metric
Non-Marking Yes
Caster Mounting Type Plate
Tread Color Natural Beige
Tread Standard
Wheel/Tread Hardness 80 Shore D
Tread Shape Standard
Wheel/Tread Hardness Rating Hard
Swivel Lock Type Total Lock
Mounting Plate Bolt Hole Pattern C
Includes Thread Guards No
Swivel Raceway Type Axial Grooved Ball Bearing, Tapered Roller Bearing
Wheel Bearing Type Precision Ball
Wheel Core Material Nylon
Swivel Construction Kingpin
Number of Mounting Holes 4
Wheel/Tread Material Nylon
Wheel/Tread Color Beige
ESD Conductive No
Resistant To High Chemical Resistance To Many Aggressive Substances
Load Capacity 1500 kg
Caster Break Type Stop Top Brake (Total Lock)
Series LS Series

Description

Swivel, Standard Plate Caster, Load Rating 3300 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 7/8 in, Wheel Width 2 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
