  6. Plate Caster, 600 lb. Load, Gray Wheel

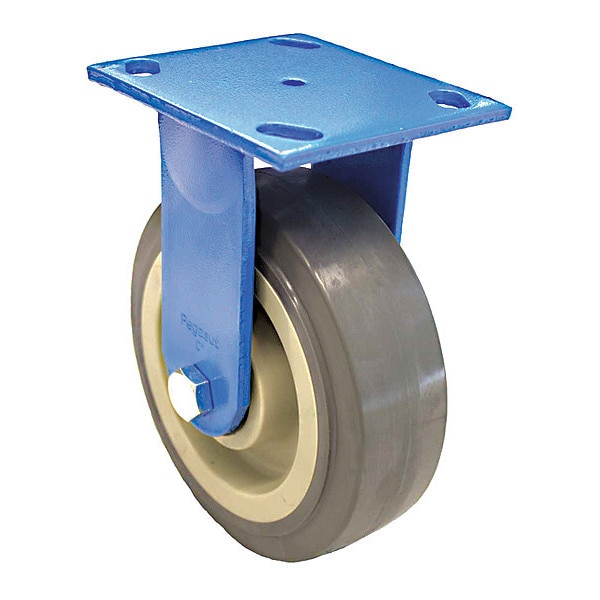

Zoro Select Plate Caster, 600 lb. Load, Gray Wheel P21R-UP040D-14-BC - main

Plate Caster, 600 lb. Load, Gray Wheel

  • Mfr # P21R-UP040D-14-BC

  • Zoro # G1617574

product price:  $18.89
/ea

Key Features

Non-Marking
Yes
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Features
Corrosion Resistance, Floor Protective
Mounting Bolt Dia.
3/8 in
Inside Bolt Hole Spacing
3 in x 3 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-UP040D-14-BC
Zoro #
G1617574
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8in
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
5 5/8 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Mounting Plate Thickness
0.236 in
Outside Slot Spacing - Width
3 in

Details

Non-Marking
Yes
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Features
Corrosion Resistance, Floor Protective
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Standards
ANSI ICWM
Extended Lead
No
Caster Brake Included
No
Item
Rigid Caster
Core Color
Gray
Replacement Wheel
Mfr. No. P-UP-040x020/050D
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
System of Measurement
Inch
Thread Guards
No
Load Rating
600 lb
Caster Sub-Type
Rigid
Caster Brake Type
No Brake
Caster Frame Material
Steel
Frame Finish
Powder Coated
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Number of Mounting Holes
4
Load Rating Range
Medium Duty
Wheel Bearing Type
Delrin
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Gray
Tread
Standard
Load Capacity
600 lb
Caster Mounting Type
Plate
ESD Conductive
No
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
55 Shore D
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Delrin
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
