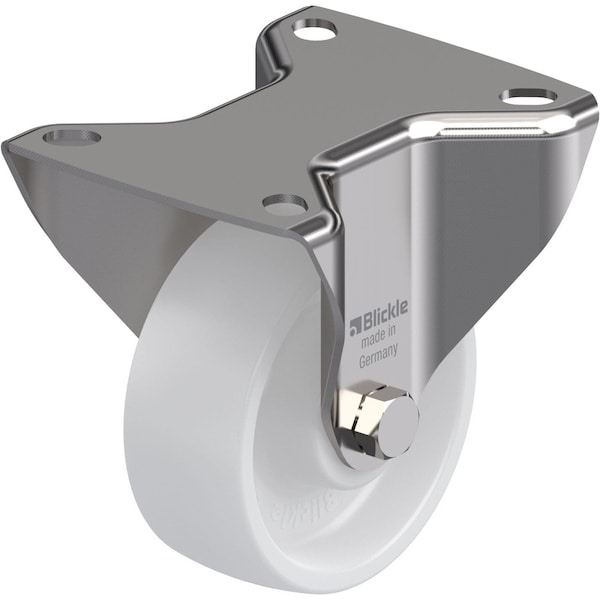

Zoro Select Rgd Plate Caster, Nylon, 3-1/8 in., 330 lb. BX-PO 80XR - main

Rgd Plate Caster, Nylon, 3-1/8 in., 330 lb.

  • Mfr # BX-PO 80XR

  • Zoro # G1618736

product price:  $34.49
/ea

Key Features

Mounting Bolt Dia.
9 mm
Caster Sub-Type
Rigid
Core Color
White
Load Rating
330 lb
Wheel Dia.
3 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BX-PO 80XR
Zoro #
G1618736
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
9 mm
Wheel Dia.
3 1/8 in
Overall Height
4in
Wheel Width
1 1/4 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Height
4 in
Overall Wheel Width
1 1/4 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Thickness
7/64in
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Length
3 15/16 in
Mounting Plate Width
3 3/8 in

Details

Caster Sub-Type
Rigid
Core Color
White
Load Rating
330 lb
Features
Corrosion Resistant
Item
Rigid Caster
Caster Temp. Range Available
No
Outside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Service, Medical and Institutional Equipment
Standards
DIN EN 12534, ISO 14001, ISO 5001, ISO 9001
Caster Brake Included
No
Frame Finish
Stainless Steel
Wheel Color
White
Inside Bolt Hole Spacing
60 mm x 80 mm
Extended Lead
No
Caster Frame Material
Stainless Steel
Caster Plate Hole Pattern
A
Number of Wheels
1
Replacement Wheel
Mfr. No. PO 80/12XR
Thread Guards
No
Wheel Core Material
Nylon
Caster Brake Type
No Brake
Number of Mounting Holes
4
Non-Marking
Yes
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Load Capacity
150 kg
Tread
Standard
Caster Mounting Type
Plate
Tread Color
White
System of Measurement
Metric
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
BX Series
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
330 lb
Compatible With
PO 80/12XR
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Rigid, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/8 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
