  11. Plate Caster, 660 lb. Ld Rating, Ball

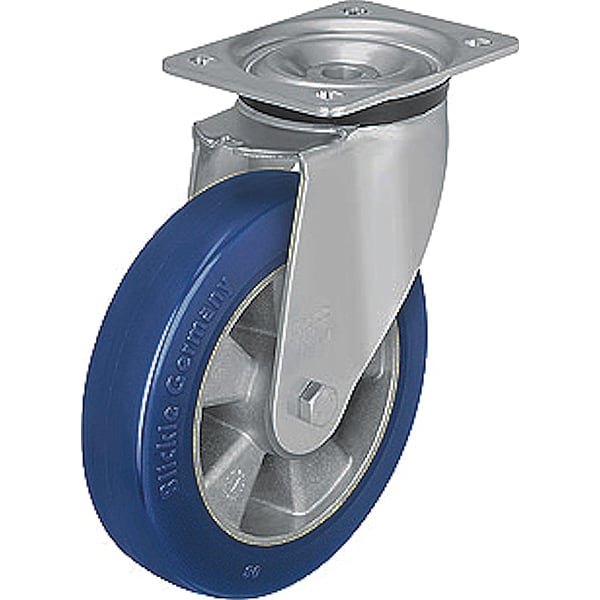

Zoro Select Plate Caster, 660 lb. Ld Rating, Ball LK-ALBS 100K-1 - main

Plate Caster, 660 lb. Ld Rating, Ball

  • Mfr # LK-ALBS 100K-1

  • Zoro # G7279069

product price: $62.75
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LK-ALBS 100K-1
Zoro #
G7279069
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Height
5 1/8 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
Swivel Radius
95 mm
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in
Overall Wheel Width
1 9/16 in
Mounting Plate Length
3 3/8 in
For Axle Dia.
10 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
660 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
D
Replacement Wheel
Mfr. No. ALBS 100/15K
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Extended Lead
No
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Floor Protective, Reduced Swivel Forces
Thread Guards
No
Caster Brake Included
No
Wheel Color
Blue
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
ESD Conductive
No
Load Capacity
300 kg
Series
LK Series
Tread Color
Blue
Load Capacity - Maximum
705 lb
Compatible With
ALBS 100/15K
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
