  11. Plate Caster, 660 lb. Load Rating, Swivel

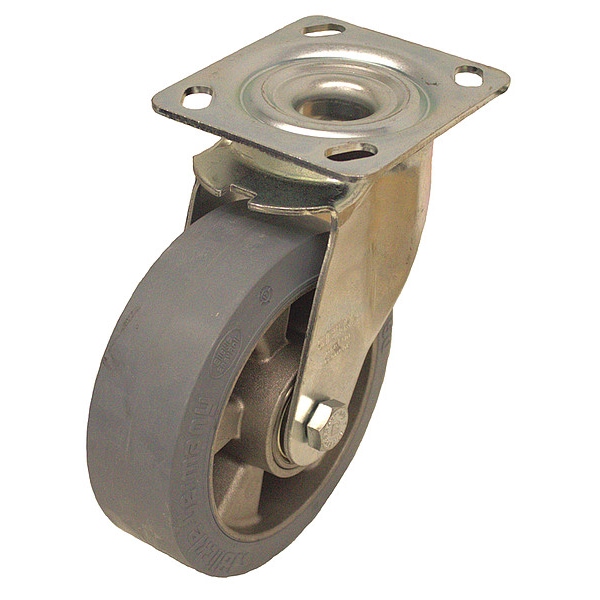

Zoro Select Plate Caster, 660 lb. Load Rating, Swivel LE-ALEV 150K-14-SG - main

Plate Caster, 660 lb. Load Rating, Swivel

  • Mfr # LE-ALEV 150K-14-SG

  • Zoro # G7277921

product price: $74.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE-ALEV 150K-14-SG
Zoro #
G7277921
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Overall Height
7-1/2in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
12 mm
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
No Brake
Load Rating
660 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Extended Lead
No
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Features
Floor Protective, Noise Reduction
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Wheel Color
Black
Includes
Top Grease Seal
Thread Guards
No
Replacement Wheel
Mfr. No. ALEV 150/20K-SG
Wheel Core Material
Aluminum
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Medium Duty
Swivel Construction
Kingpin
Operating Temperature Range
-15 Degrees To 175 Degrees F
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
660 lb
Tread Color
Gray
Accessories
Optional: RI-04.14 (Directional Lock)
Series
LE Series
ESD Conductive
No
Load Capacity - Maximum
660 lb
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
