  11. Plate Caster, 770 lb. Ld Rating, Ball

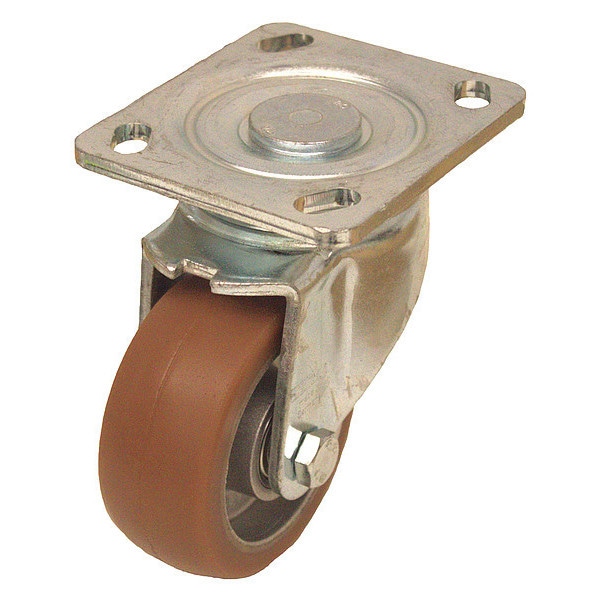

Zoro Select Plate Caster, 770 lb. Ld Rating, Ball LH-ALB 101K-14 - main

Plate Caster, 770 lb. Ld Rating, Ball

  • Mfr # LH-ALB 101K-14

  • Zoro # G9463531

product price: $97.15
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Besthane Polyurethne
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-ALB 101K-14
Zoro #
G9463531
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Height
5 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Overall Height
5-33/64in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in
Overall Wheel Width
1 9/16 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Besthane Polyurethne
Caster Brake Type
No Brake
Load Rating
770 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Tan
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Features
Floor Protective, Sealed Swivel Bearing
Wheel Color
Brown
Thread Guards
No
Extended Lead
No
Replacement Wheel
Mfr. No. ALB 101/15K
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Includes Thread Guards
No
Load Rating Range
Heavy Duty
Wheel Core Material
Aluminum
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Tread
Standard
Accessories
Optional: RI-04.14 (Directional Lock)
ESD Conductive
No
Load Capacity
770 lb
Tread Color
Brown
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
880 lb
Compatible With
ALB 101/15K
Caster Features
Corrosion-Resistant, Debris-Resistant, Easy Turn, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
